AT45DB021E-SHNHA-T

Part No AT45DB021E-SHNHA-T
Manufacturer Adesto Technologies
Catalog Flash
Description IC FLASH 2MBIT 70MHZ 8SOIC / NOR Flash Serial-SPI 1.8V/2.5V/3.3V 2M-bit 7ns 8-Pin SOIC EIAJ T/R
Datasheet
AT45DB021E-SHNHA-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Adesto Technologies
Packaging Reel package
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH
Memory Size 2Mb (264 Bytes x 1024 pages)
Clock Frequency 70MHz
Write Cycle Time - Word, Page 8μs, 3ms
Memory Interface SPI
Operating Supply Voltage 1.65 V ~ 3.6 V
Operating Temperature Range -40°C ~ 85°C (TC)
Mounting SMD

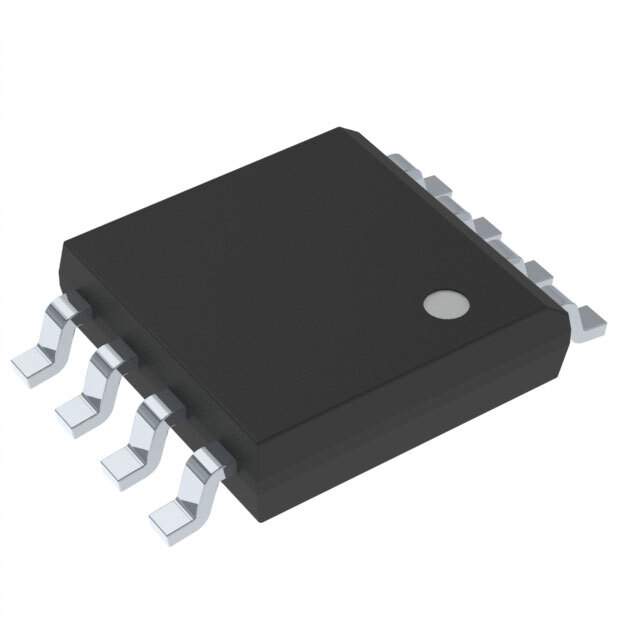

Package 8-SOIC (0.209", 5.30mm Width)
Manufacturer Package 8-SOIC
Win Source Part Number 769012-AT45DB021E-SHNHA-T
Popularity Medium
Supply and Demand Status Limited
Family Name AT45DB021E
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian AT45DB021E-SHNHA-T CAD Model

Description

The Adesto Technologies AT45DB021E-SHNHA-T is a FLASH Memory IC with a memory size of 2Mb (264 Bytes x 1024 pages) and an SPI interface.

  • Memory Size: 2Mb (264 Bytes x 1024 pages)
  • Interface: SPI
  • Package: 8-SOIC (0.209", 5.30mm Width)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 85°C (TC)
  • Family: AT45DB021E
  • Category: Integrated Circuits (ICs)
  • Popularity: medium
  • Supply and Demand Status: limited
  • REACH: Unaffected
  • ECCN: EAR99
