Same model may have multiple batches, images only for reference.

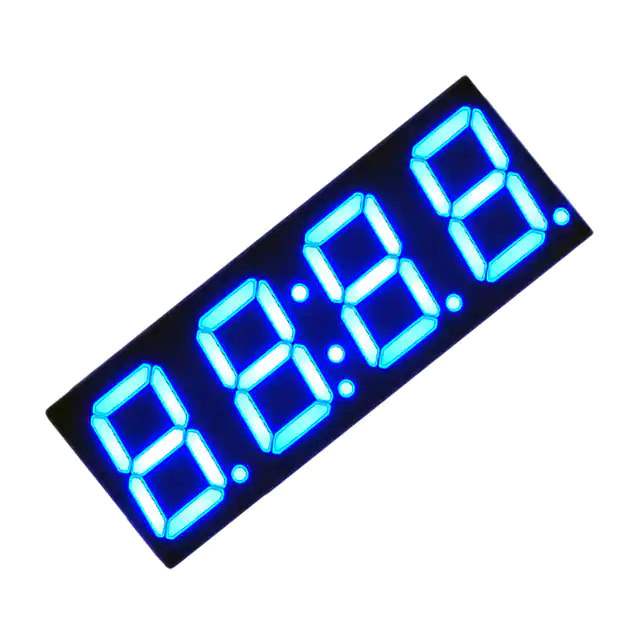

812 Real Image
Same model may have multiple batches, images only for reference.

812

Part No 812
Manufacturer Adafruit Industries LLC
Catalog Display Modules - LED Character and Numeric
Description DISP 7SEG 0.56" QUAD BLUE 14DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Character and Numeric
Mfr Adafruit Industries LLC
Package Bulk
Product Status Active
Number of Characters 4
Size / Dimension 0.749" H x 1.978" W x 0.315" D (19.00mm x 50.20mm x 8.00mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment Clock
Common Pin Common Cathode
Color Blue
Voltage - Forward (Vf) (Typ) 3.2V
Current - Test 20mA
Millicandela Rating 15mcd
Wavelength - Peak 468nm
Power Dissipation (Max) 100mW
Package / Case 14-DIP (0.600", 15.24mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 551173-812
Ultra Librarian 3D Model Ultra Librarian 812 CAD Model

Description

Add a touch of brilliance to your projects with the Adafruit LED Character Display. This 7-segment clock display features four characters, each measuring 0.56" (14.22mm) in size.

  • Color: Blue
  • Millicandela rating: 15mcd
  • Package: 14-DIP
  • Forward voltage: 3.2V
  • Test current: 20mA
  • Versatile choice that adds: a professional touch to your projects
