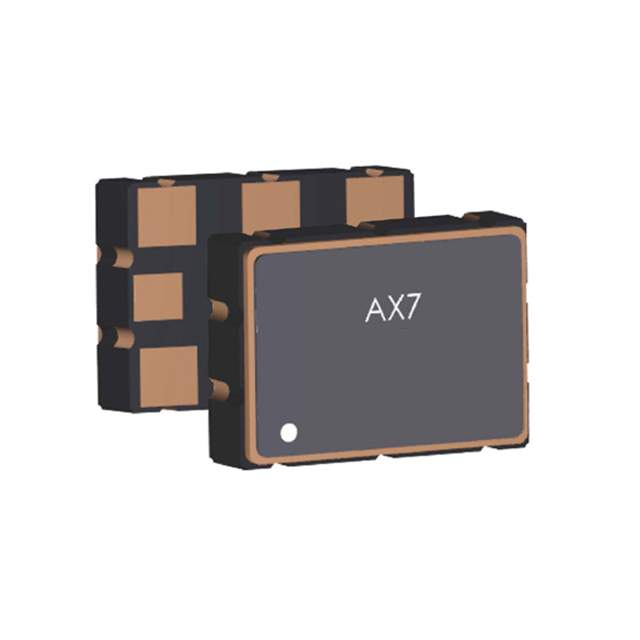

AX7PAF2-1966.0800T Real Image
Same model may have multiple batches, images only for reference.

AX7PAF2-1966.0800T

Part No AX7PAF2-1966.0800T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 1.96608GHZ LVPECL / 1.96608 GHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 8-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ClearClock™ AX7
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 1.96608 GHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 94mA
Mounting SMD (SMT)
Package / Case 8-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Current - Supply (Disable) (Max) 86mA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 250
Win Source Part Number 1044042-AX7PAF2-1966.0800T
Ultra Librarian 3D Model Ultra Librarian AX7PAF2-1966.0800T CAD Model

Description

The ClearClock™ AX7 series XO (Standard) oscillator is a high-performance electronic component designed for use in a wide range of applications.

  • Frequency: 1.96608 GHz
  • Frequency Stability: ±25ppm
  • Output: LVPECL
  • Current Supply: 94mA
  • Package / Case: 8-SMD, No Lead
  • Temperature Range: -40°C ~ 85°C
  • Function Type: enable/disable
  • Height: 0.075" (1.90mm)
  • Manufacturer: Abracon LLC
  • Packaging: tape & reel (TR)
  • Standard Package: 250
