Same model may have multiple batches, images only for reference.

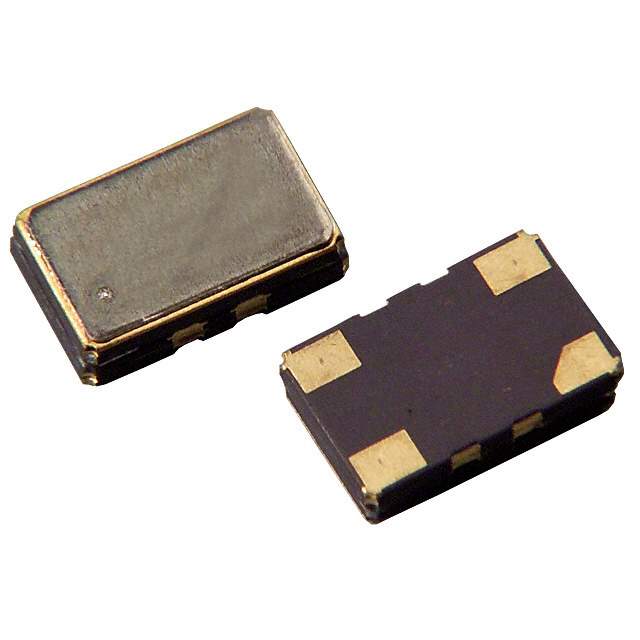

ASVTX-09-16.000MHZ-T Real Image
Same model may have multiple batches, images only for reference.

ASVTX-09-16.000MHZ-T

Part No ASVTX-09-16.000MHZ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC VCTCXO 16.0000MHZ SNWV / 16 MHz VCTCXO Clipped Sine Wave Oscillator 3V 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASVTX-09
Package Tape & Reel
Base Resonator Crystal
Type VCTCXO
Frequency 16 MHz
Output Clipped Sine Wave
Voltage - Supply 3V
Frequency Stability ±2.5ppm
Temperature Range - Operating -30°C ~ 75°C
Current - Supply (Max) 2mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.063" (1.60mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1350271-ASVTX-09-16.000MHZ-T
Ultra Librarian 3D Model Ultra Librarian ASVTX-09-16.000MHZ-T CAD Model

Description

The ASVTX-09 VCTCXO is a high-performance crystal oscillator with a clipped sine wave output. Abracon LLC

  • Output Waveform: Clipped Sine Wave
  • Frequency Stability: ±2.5ppm
  • Voltage Supply: 3V
  • Maximum Current Consumption: 2mA
  • Package: 4-SMD, No Lead
  • Size Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Seated Height: 0.063" (1.60mm)
  • Operating Temperature Range: -30°C to 75°C
  • REACH: Unaffected
  • Standard Package: 1,000
