Same model may have multiple batches, images only for reference.

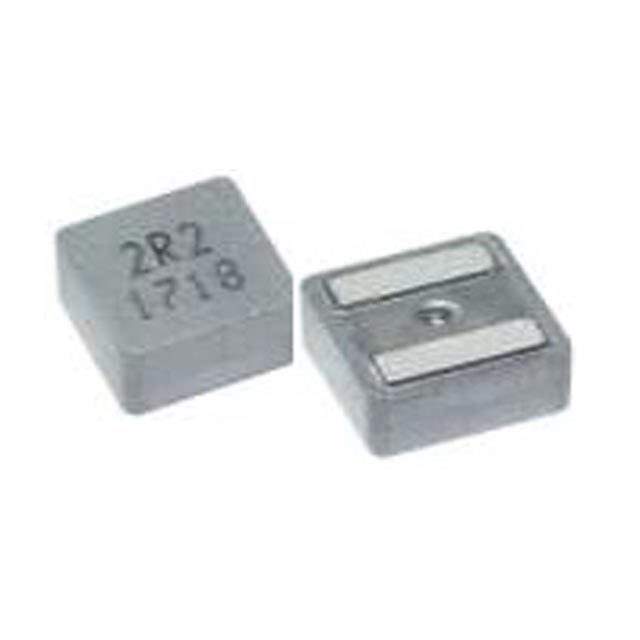

ASPIAIG-QLR5050-100M-T Real Image
Same model may have multiple batches, images only for reference.

ASPIAIG-QLR5050-100M-T

Part No ASPIAIG-QLR5050-100M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 10UH 5A 43 MOHM SMD / 10 µH Shielded Molded Inductor 5 A 43mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPIAIG-QLR5050
Package Tape & Reel
Type Molded
Material - Core Alloy Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Current - Saturation (Isat) 5.4A
Shielding Shielded
DC Resistance (DCR) 43mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.236" L x 0.224" W (6.00mm x 5.70mm)
Height - Seated (Max) 0.197" (5.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 535-ASPIAIG-QLR5050-100M-TDKR,535-ASPIAIG-QLR5050-100M-TTR,535-ASPIAIG-QLR5050-100M-TCT
Standard Package 1,500
Win Source Part Number 997580-ASPIAIG-QLR5050-100M-T
Ultra Librarian 3D Model Ultra Librarian ASPIAIG-QLR5050-100M-T CAD Model

Description

The ASPIAIG-QLR5050-100M-T is a molded, shielded inductor.

  • Inductance: 10 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 43mOhm max
  • Current Rating: 5A
  • AEC-Q200 Rated: Yes
  • Temperature Range: -55°C to 155°C
  • Package: Tape and Reel
  • Dimensions: 0.236" L x 0.224" W (6.00mm x 5.70mm)
  • Core Material: Alloy Powder
  • Package/Case: Nonstandard
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
  • Manufacturer: Abracon LLC
