Same model may have multiple batches, images only for reference.

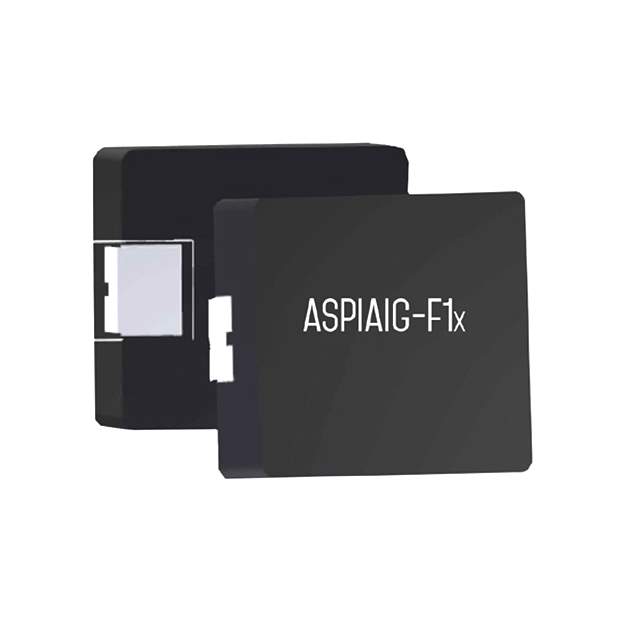

ASPIAIG-F1040-2R2M-T Real Image
Same model may have multiple batches, images only for reference.

ASPIAIG-F1040-2R2M-T

Part No ASPIAIG-F1040-2R2M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 2.2UH 12A 7 MOHM SMD / 2.2 µH Shielded Molded Inductor 12 A 7mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPIAIG-F1
Package Tape & Reel
Type Molded
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 12 A
Current - Saturation (Isat) 27A
Shielding Shielded
DC Resistance (DCR) 7mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Supplier Device Package 1040
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-14278-6,535-14278-1,535-14278-2,ASPIAIG-F1040-2R2M-T-ND
Standard Package 500
Win Source Part Number 1034260-ASPIAIG-F1040-2R2M-T
Ultra Librarian 3D Model Ultra Librarian ASPIAIG-F1040-2R2M-T CAD Model

Description

The ASPIAIG-F1 series inductor from Abracon LLC is a high-quality component that offers excellent performance and reliability.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Shielding: Shielded
  • AEC-Q200 Rated: Yes
  • Temperature Range: -40°C to 125°C
  • Mounting Type: SMD (SMT)
  • Packaging: Tape and Reel
  • Units per Package: 500
  • Current Rating: 12A
  • DC Resistance (DCR): 7mOhm Max
