Same model may have multiple batches, images only for reference.

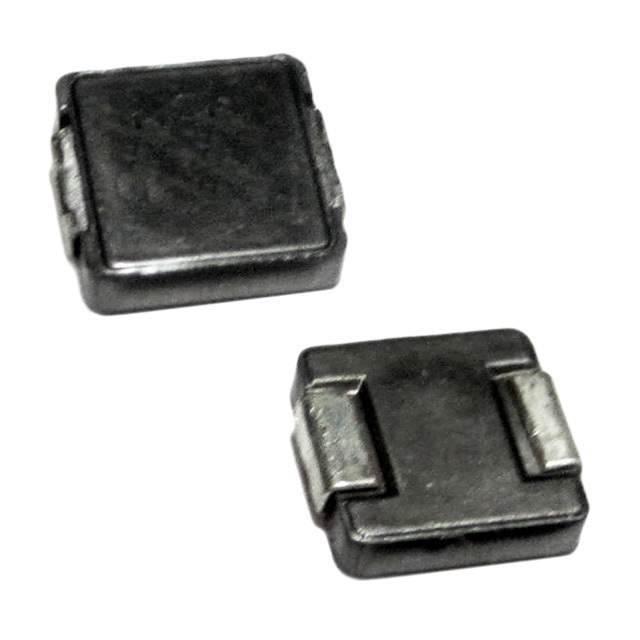

ASPI-7318-3R3M-T Real Image
Same model may have multiple batches, images only for reference.

ASPI-7318-3R3M-T

Part No ASPI-7318-3R3M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 3.3UH 6A 30 MOHM SMD  /  3.3 µH Shielded Drum Core, Wirewound Inductor 6 A 30mOhm Max Nonstandard
Datasheet
ASPI-7318-3R3M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPI-7318
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 6 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 200 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.268" W (7.30mm x 6.80mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -ASPI-7318-3R3M-TTR,ASPI73183R3MT,-ASPI-7318-3R3M-TCT,ASPI-7318-3R3M-TCT,ASPI-7318-3R3M-TTR,ASPI-7318-3R3M-T-ND
Standard Package 1,000
Win Source Part Number 983840-ASPI-7318-3R3M-T
Ultra Librarian 3D Model Ultra Librarian ASPI-7318-3R3M-T CAD Model

Description

The ASPI-7318-3R3M-T is an electronic component used in inductors, coils, and chokes. It is a fixed inductor that is shielded and has a drum core, wirewound type.

  • Manufacturer: Abracon LLC
  • Packaging: Tape & reel (TR) and cut tape (CT)
  • Standard Package: 1,000
  • Height: 0.118" (3.00mm)
  • Dimension: 0.287" L x 0.268" W (7.30mm x 6.80mm)
  • Tolerance: ±20%
  • DC Resistance (DCR): 30mOhm Max
  • Material: Ferrite
  • Temperature Range: -55°C ~ 125°C
  • Current Rating: 6 A
  • Inductance Frequency: 200 kHz
  • Description: The ASPI-7318-3R3M-T is a reliable and efficient inductor that is suitable for various applications.
