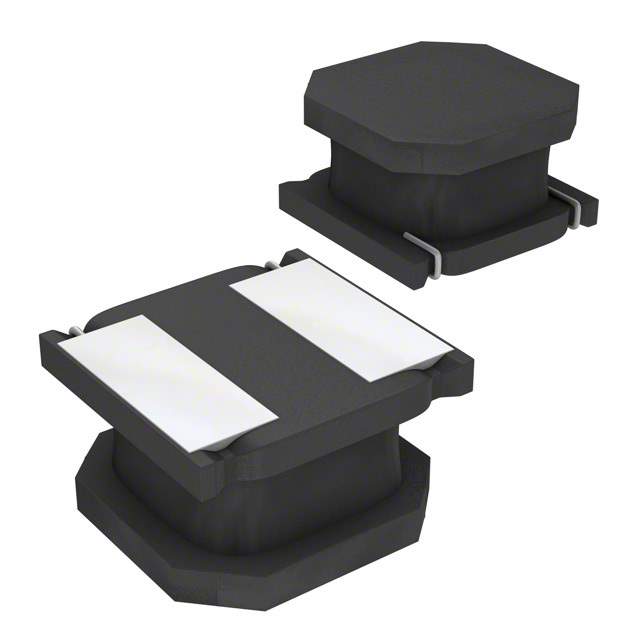

ASPI-2012-4R7M-T Real Image
Same model may have multiple batches, images only for reference.

ASPI-2012-4R7M-T

Part No ASPI-2012-4R7M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 4.7UH 820MA 294MOHM SM / 4.7 µH Shielded Drum Core, Wirewound Inductor 820 mA 294mOhm Max Nonstandard
Datasheet
ASPI-2012-4R7M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPI-2012
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 820 mA
Current - Saturation (Isat) 970mA
Shielding Shielded
DC Resistance (DCR) 294mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-12300-2,535-12300-1,535-12300-6
Standard Package 2,000
Win Source Part Number 983839-ASPI-2012-4R7M-T
Ultra Librarian 3D Model Ultra Librarian ASPI-2012-4R7M-T CAD Model

Description

The ASPI-2012-4R7M-T is a fixed inductor from the ASPI-2012 series.

  • Manufacturer: Abracon LLC
  • Inductance: 4.7 µH
  • Current Rating: 820 mA
  • Package: Tape & reel
  • Shielded: Yes
  • Tolerance: ±20%
  • DC Resistance (DCR): 294mOhm Max
  • Temperature Range: -40°C ~ 125°C
  • Description: The ASPI-2012-4R7M-T is suitable for use in electronic devices such as mobile phones, cameras, and audio equipment.
