Same model may have multiple batches, images only for reference.

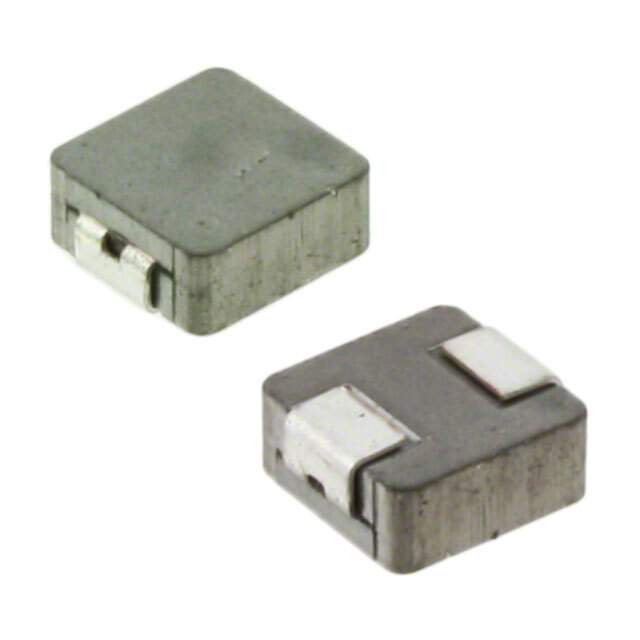

ASPI-0630HI-2R2M-T15 Real Image
Same model may have multiple batches, images only for reference.

ASPI-0630HI-2R2M-T15

Part No ASPI-0630HI-2R2M-T15
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 2.2UH 8A 20 MOHM SMD / 2.2 µH Shielded Molded Inductor 8 A 20mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPI-0630HI
Package Tape & Reel (TR),Cut Tape (CT)
Type Molded
Material - Core Carbonyl Powder
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 14A
Shielding Shielded
DC Resistance (DCR) 20mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.283" L x 0.262" W (7.20mm x 6.65mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names ASPI-0630HI-2R2M-T15TR,ASPI-0630HI-2R2M-T15CT,ASPI0630HI2R2MT15,-ASPI-0630HI-2R2M-T15TR,-ASPI-0630HI-2R2M-T15CT
Standard Package 1,500
Win Source Part Number 1175350-ASPI-0630HI-2R2M-T15
Ultra Librarian 3D Model Ultra Librarian ASPI-0630HI-2R2M-T15 CAD Model

Description

The ASPI-0630HI-2R2M-T15 is a shielded molded inductor designed by Abracon LLC.

  • Package: non-standard
  • Packaging: tape & reel (TR) and cut tape (CT)
  • Inductance: 2.2 µH
  • DC Resistance (DCR): 20mOhm max.
  • Current Rating: 8 A
  • Saturation Current: 14A
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Frequency Rating: 100 kHz
  • Core Material: carbonyl powder
  • Temperature Range: -55°C to 125°C
  • Dimension: 0.283" L x 0.262" W (7.20mm x 6.65mm)
  • REACH: unaffected
  • ECCN: EAR99
