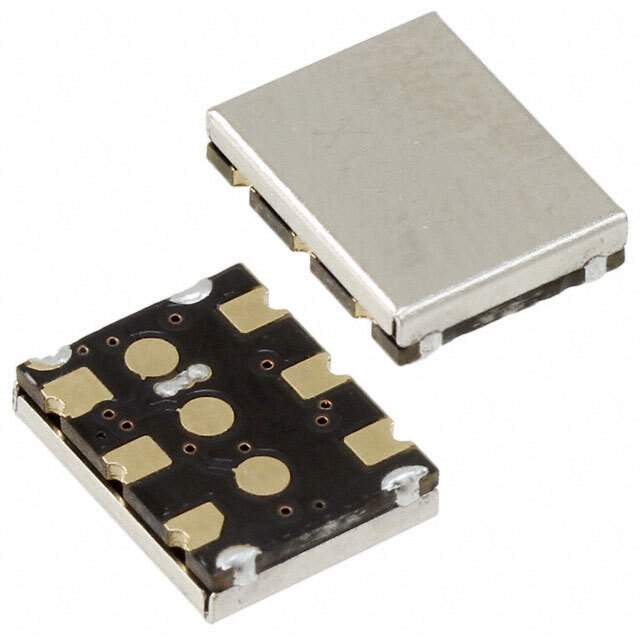

ASGTX-C-25.000MHZ-1 Real Image
Same model may have multiple batches, images only for reference.

ASGTX-C-25.000MHZ-1

Part No ASGTX-C-25.000MHZ-1
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC VCTCXO 25.0000MHZ LVCMO / 25 MHz VCTCXO LVCMOS Oscillator 3.135V ~ 3.465V 6-SMD, No Lead
Datasheet
ASGTX-C-25.000MHZ-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASGTX
Package Bulk
Base Resonator Crystal
Type VCTCXO
Frequency 25 MHz
Output LVCMOS
Voltage - Supply 3.135V ~ 3.465V
Frequency Stability ±1ppm
Temperature Range - Operating -30°C ~ 70°C
Current - Supply (Max) 45mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.354" L x 0.276" W (9.00mm x 7.00mm)
Height - Seated (Max) 0.088" (2.24mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1
Win Source Part Number 1000727-ASGTX-C-25.000MHZ-1
Ultra Librarian 3D Model Ultra Librarian ASGTX-C-25.000MHZ-1 CAD Model

Description

The Abracon LLC ASGTX-C-25.000MHZ-1 is a VCTCXO type oscillator that comes in a bulk package.

  • Height Seated (Max): 0.088 inches (2.24mm)
  • Frequency: 25 MHz
  • Output: LVCMOS
  • Frequency Stability: ±1ppm
  • Current Supply (Max): 45mA
  • Voltage Supply: 3.135V ~ 3.465V
  • Package/Case: 6-SMD, No Lead
  • MSL Level: 1 (unlimited)
  • Base Resonator: crystal
  • HTSUS: 8542.39.0001
