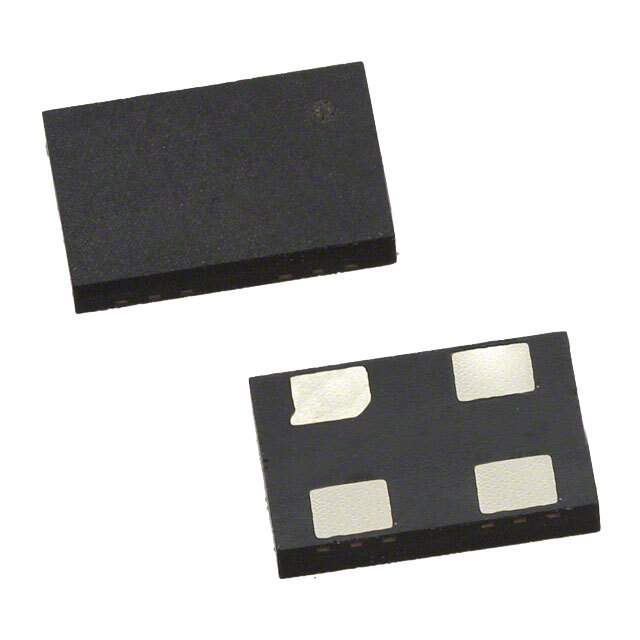

ASFLM2-12.288MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASFLM2-12.288MHZ-LC-T

Part No ASFLM2-12.288MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 12.2880MHZ LVCMOS / 12.288 MHz XO (Standard) LVCMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASFLM2-12.288MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASFLM, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 12.288 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-12113-6,535-12113-2,535-12113-1,535-12113,535-12113-ND,DSC1033BI1-12.2880T
Standard Package 1,000
Win Source Part Number 1003196-ASFLM2-12.288MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASFLM2-12.288MHZ-LC-T CAD Model

Description

The Abracon LLC ASFLM2-12.288MHZ-LC-T is a Pure Silicon™ series XO (Standard) oscillator with a frequency of 12.288 MHz and a frequency stability of ±50ppm.

  • Frequency: 12.288 MHz
  • Frequency Stability: ±50ppm
  • Voltage Supply: 3.3V
  • Current Supply: 15mA
  • Mounting: SMD (SMT)
  • Height: 0.035" (0.90mm)
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Function: Standby (Power Down)
  • Output: LVCMOS
  • ECCN: EAR99
  • REACH: Unaffected
