ASEM1-10.000MHZ-LC-T Real Image ASEM1-10.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.
ASEM1-10.000MHZ-LC-T Real Image ASEM1-10.000MHZ-LC-T Real Image
ASEM1-10.000MHZ-LC-T Real Image ASEM1-10.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

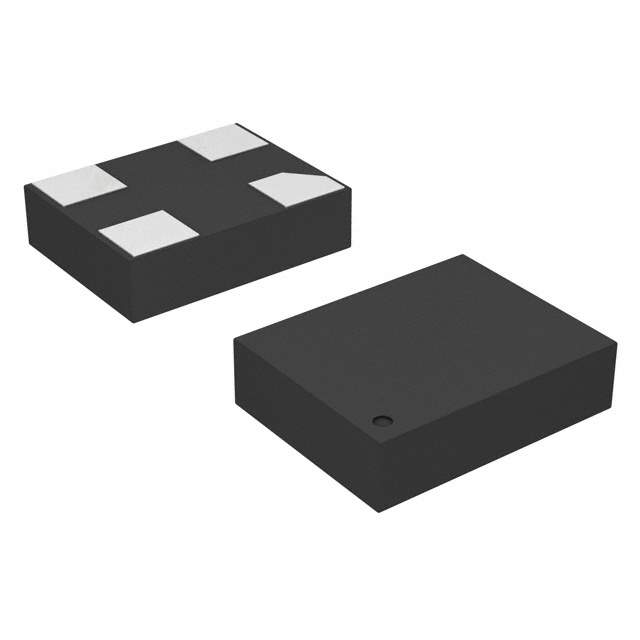

ASEM1-10.000MHZ-LC-T

Part No ASEM1-10.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 10.0000MHZ CMOS SMD / 10 MHz XO (Standard) CMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASEM1-10.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASEM, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 10 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 1µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names Q6795038TK,535-9755-2,535-9755-1,535-9755-6,ASEM110000MHZLCT
Standard Package 1,000
Win Source Part Number 991363-ASEM1-10.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASEM1-10.000MHZ-LC-T CAD Model

Description

The Abracon LLC ASEM110000MHZLCT is a Pure Silicon™ XO (Standard) crystal oscillator with a frequency of 10 MHz and a frequency stability of ±50ppm.

  • Frequency: 10 MHz
  • Frequency Stability: ±50ppm
  • Output: CMOS
  • Current Supply: 15mA
  • Maximum Disable Current Supply: 1µA
  • Package: 4-SMD, no lead
  • Height: 0.035" (0.90mm)
