Same model may have multiple batches, images only for reference.

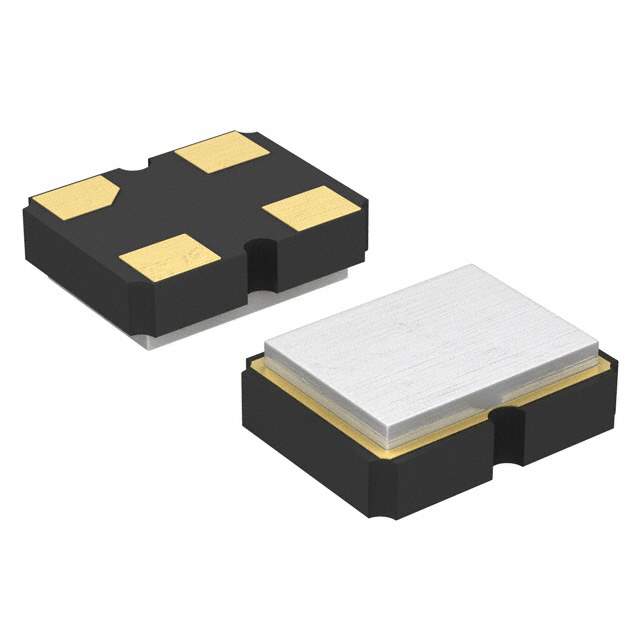

ASE3-40.000MHZ-KT Real Image
Same model may have multiple batches, images only for reference.

ASE3-40.000MHZ-KT

Part No ASE3-40.000MHZ-KT
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 40.0000MHZ CMOS SMD
Datasheet
ASE3-40.000MHZ-KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Features 40 MHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Manufacturer Abracon LLC
Series ASE3
Package Reel - TR
Operating Temperature Range -10°C ~ 70°C
Mounting Surface Mount
Package 4-SMD, No Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 535-9553-2, 535-9553-1, ASE340000MHZKT, ASE3-40.000MHZ-K-T, 535-9553-6
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 894131-ASE3-40.000MHZ-KT
Ultra Librarian 3D Model Ultra Librarian ASE3-40.000MHZ-KT CAD Model

Description

The ASE3-40.000MHZ-KT oscillator is a high-quality electronic component manufactured by Abracon LLC.

  • Series: ASE3
  • Popularity: High
  • Package: 4-SMD, no lead
  • Mounting Type: Surface Mount
  • Frequency: 40 MHz
  • Operating Temperature: -10°C to 70°C
  • Type: CMOS
  • Enable/Disable: 1.8V
  • Height: 0.130 inches (3.30mm)
