Same model may have multiple batches, images only for reference.

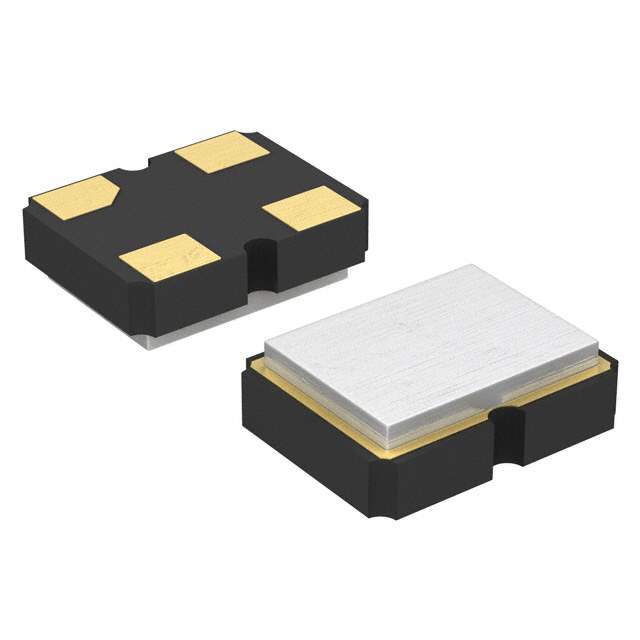

ASE3-27.000MHZ-KT Real Image
Same model may have multiple batches, images only for reference.

ASE3-27.000MHZ-KT

Part No ASE3-27.000MHZ-KT
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 27.0000MHZ CMOS SMD / 27 MHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
ASE3-27.000MHZ-KT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Manufacturer Abracon LLC
Packaging Reel - TR
Base Resonator Crystal
Type XO (Standard)
Frequency 27 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.8V
Frequency Stability ±30ppm
Temperature Range - Operating -10°C ~ 70°C
Current - Supply (Max) 4mA
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 535-9551-6,ASE3-27.000MHZ-K-T,535-9551-2,535-9551-1,ASE327000MHZKT
Standard Package 1,000
Win Source Part Number 1328193-ASE3-27.000MHZ-KT
Ultra Librarian 3D Model Ultra Librarian ASE3-27.000MHZ-KT CAD Model

Description

The Abracon LLC ASE3 series XO oscillator is a CMOS output frequency generator that operates on a voltage supply of 1.8V.

  • Manufacturer: Abracon LLC
  • Series: ASE3
  • Output: CMOS
  • Voltage Supply: 1.8V
  • Frequency: 27 MHz
  • Frequency Stability: ±30ppm
  • Height: 0.047” (1.20mm)
  • Mounting Type: Surface Mount Device (SMD)
  • Function: Enable/Disable
  • Package: Reel
  • Current Supply: 4mA
  • Current Supply (Disable): 10μA
