Same model may have multiple batches, images only for reference.

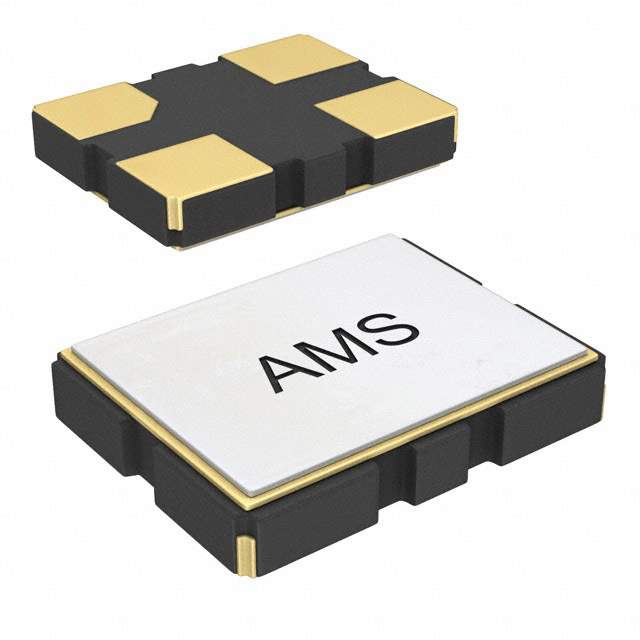

ASE-8.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASE-8.000MHZ-LC-T

Part No ASE-8.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASE
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 8 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
Other Names ASE-8.000MHZ-L-C-T,ASE8000MHZLCT,535-9558-6,535-9558-1,Q4736343,535-9558-2
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1284962-ASE-8.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASE-8.000MHZ-LC-T CAD Model

Description

The ASE-8.000MHZ-LC-T is an XO (Standard) type oscillator with a frequency of 8 MHz manufactured by Abracon LLC.

  • Function: Enable/Disable
  • Output: CMOS
  • Frequency Stability: ±50ppm
  • Voltage Supply: 3.3V
  • Maximum Current Draw: 7mA
  • Height Seated: 0.047 inches (1.2mm)
  • Mounting: SMD (SMT)
  • Package: 4-SMD, No Lead
  • Operating Temperature Range: -40°C to 85°C
  • Series: ASE series
  • Technology: Crystal resonator technology
  • Packaging: Tape and reel packaging
  • Alternative Parts: ASE-8.000MHZ-L-C-T, ASE8000MHZLCT, 535-9558-6, 535-9558-1, Q4736343, and 535-9558-2.
