Same model may have multiple batches, images only for reference.

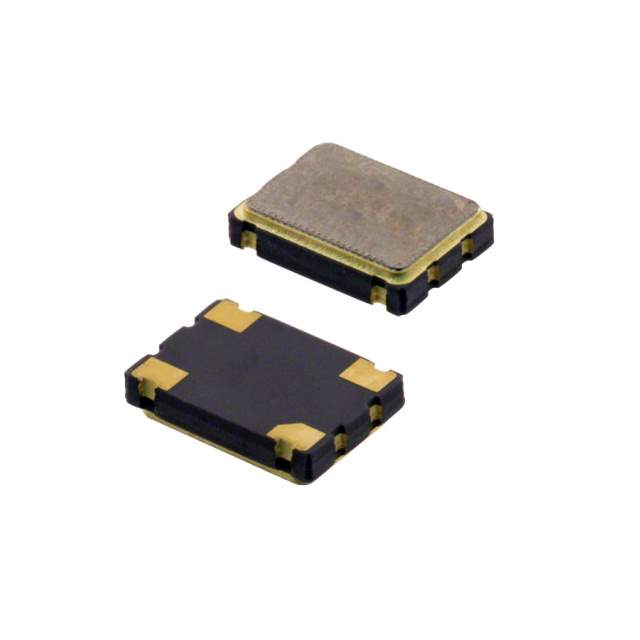

ASD3-25.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASD3-25.000MHZ-LC-T

Part No ASD3-25.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 25.000MHZ HCMOS SMD / 25 MHz XO (Standard) HCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
ASD3-25.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASD
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 4mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.039" (1.00mm)
Current - Supply (Disable) (Max) 20µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0080
Win Source Part Number 1351848-ASD3-25.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASD3-25.000MHZ-LC-T CAD Model

Description

The ASD series is a XO (Standard) oscillator that is designed for enable/disable function.

  • Package: Surface Mount 4-SMD, no lead
  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Seated Height: 0.039" (1.00mm)
  • Model: ASD3-25.000MHZ-LC-T
  • Frequency Output: 25 MHz
  • Output: HCMOS
  • Frequency Stability: ±50ppm
  • Supply Current (Max): 4mA
  • Voltage Supply: 1.8V
  • Operating Temperature: -40°C ~ 85°C
