Same model may have multiple batches, images only for reference.

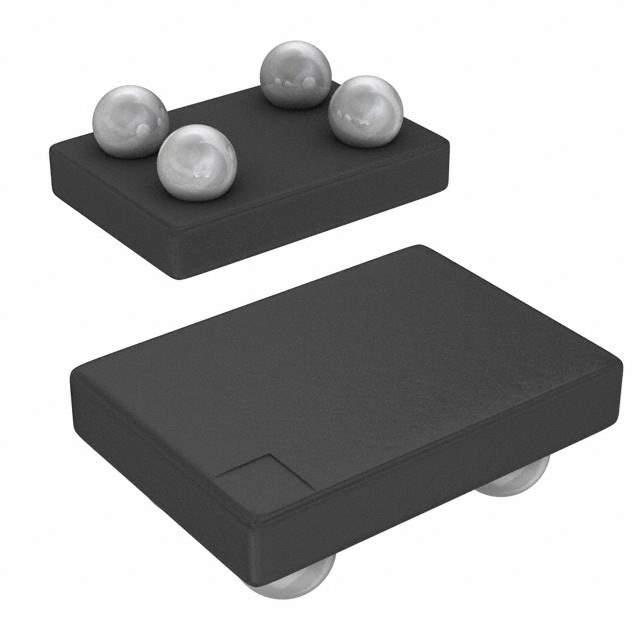

ASCSM-68.000MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASCSM-68.000MHZ-LR-T

Part No ASCSM-68.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 68.0000MHZ CMOS SMD / 68 MHz XO (Standard) CMOS Oscillator 1.7V ~ 3.6V Enable/Disable 4-UFBGA, CSPBGA
Datasheet
ASCSM-68.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASCSM, Pure Silicon™
Package Tape & Reel (TR)
Product Status Obsolete
Base Resonator MEMS
Type XO (Standard)
Frequency 68 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.7V ~ 3.6V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 6.5mA
Mounting SMD (SMT)
Package / Case 4-UFBGA, CSPBGA
Dimension 0.070" L x 0.049" W (1.79mm x 1.25mm)
Height - Seated (Max) 0.027" (0.69mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 2,500
Win Source Part Number 1229164-ASCSM-68.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASCSM-68.000MHZ-LR-T CAD Model

Description

The Abracon LLC 1229164-ASCSM-68.000MHZ-LR-T is an obsolete electronic component that comes in tape and reel packaging.

  • Series: ASCSM, Pure Silicon™
  • Type: XO (Standard)
  • Height Seated (Max): 0.027" (0.69mm)
  • Standard Package: 2,500
  • Mounting: SMD (SMT)
  • Frequency: 68 MHz
  • Function: Enable/Disable
  • Output: CMOS
  • Base Resonator: MEMS
