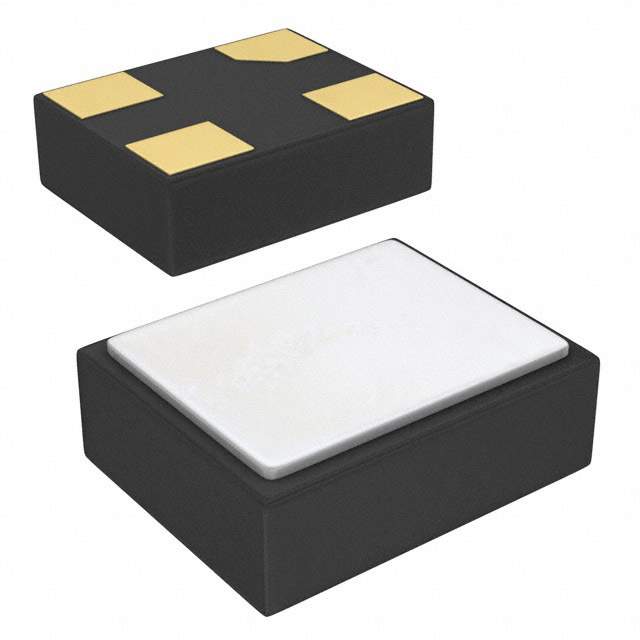

ASA1-22.000MHZ-L-T3 Real Image
Same model may have multiple batches, images only for reference.

ASA1-22.000MHZ-L-T3

Part No ASA1-22.000MHZ-L-T3
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 22.0000MHZ HCMOS SMD / 22 MHz XO (Standard) HCMOS Oscillator 2.5V Enable/Disable 4-SMD, No Lead
Datasheet
ASA1-22.000MHZ-L-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASA
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 22 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 2.5V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 10mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 1034582-ASA1-22.000MHZ-L-T3
Ultra Librarian 3D Model Ultra Librarian ASA1-22.000MHZ-L-T3 CAD Model

Description

The ASA1-22.000MHZ-L-T3 from Abracon LLC is a standard XO oscillator with a frequency of 22 MHz and a frequency stability of ±50 ppm.

  • Frequency: 22 MHz
  • Frequency Stability: ±50 ppm
  • Height: 0.031" (0.80mm)
  • Packaging: Tape and Reel
  • Operating Temperature: -40°C to 85°C
  • Current Supply: 10mA
  • Output Type: HCMOS
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
