Same model may have multiple batches, images only for reference.

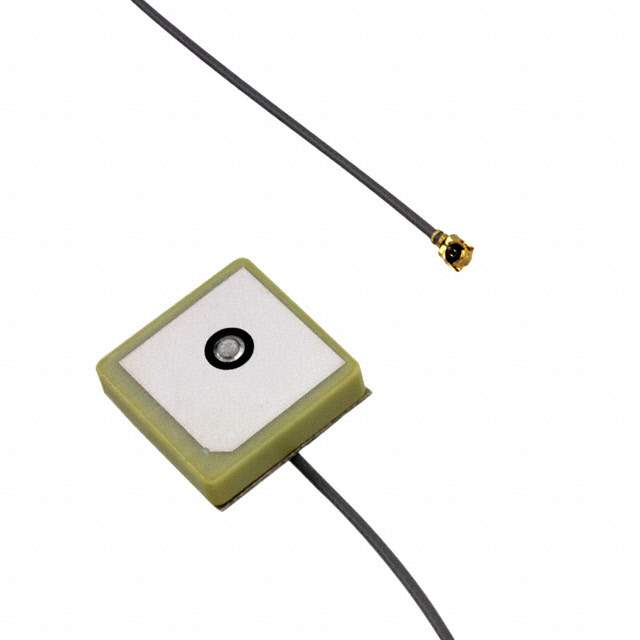

APAM1866YA18 Real Image
Same model may have multiple batches, images only for reference.

APAM1866YA18

Part No APAM1866YA18
Manufacturer Abracon LLC
Catalog RF Antennas
Description ACTIVE INTRNL ANT 1575.42MHZ GPS / GPS Receiver 1576.44MHz 3.3V Automotive Tray
Datasheet
APAM1866YA18 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Abracon LLC
Packaging Tray
Frequency Group UHF (1 GHz ~ 2 GHz)
Frequency (Center/Band) 1.575GHz
Frequency Range 1.573GHz ~ 1.578GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 1.5
Gain 2dBic
Features LNA
Termination Cable (205mm) - IPEX
Mounting SMD
Height (Maximum) 0.276" (7.00mm)
Applications GPS
Win Source Part Number 768441-APAM1866YA18
Popularity Medium
Supply and Demand Status Limited
Family Name APAM1866YA18
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian APAM1866YA18 CAD Model

Description

The Abracon LLC APAM1866YA18 is a high-performance GPS ceramic patch antenna module.

  • LNA: Yes
  • Cable Termination: 205mm IPEX
  • Frequency Range: 1.573GHz to 1.578GHz
  • Gain: 2dBic
  • Applications: GPS
  • Supply and Demand Status: Limited
