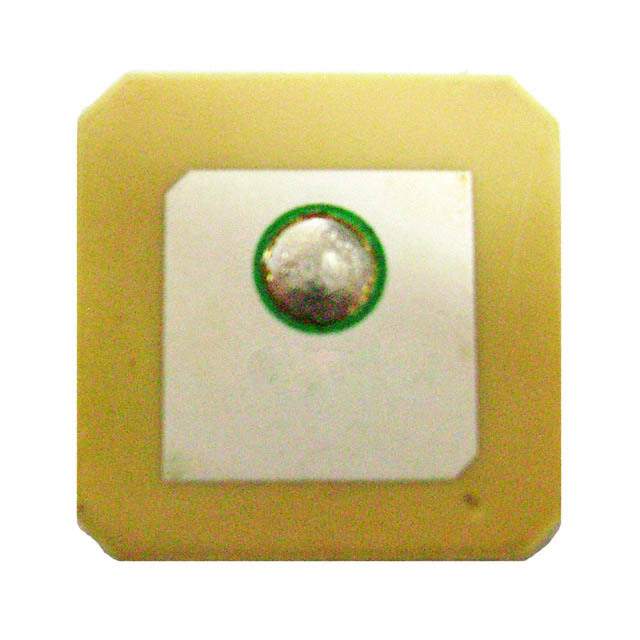

Same model may have multiple batches, images only for reference.

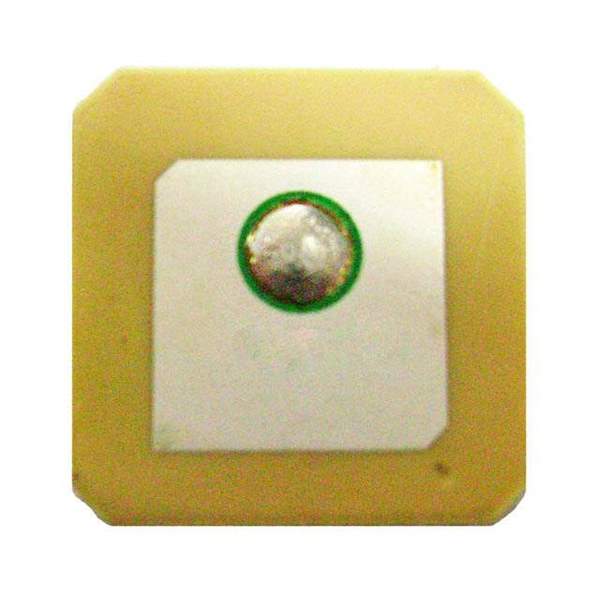

APAE2338L2540DDDB1-T Real Image
Same model may have multiple batches, images only for reference.

APAE2338L2540DDDB1-T

Part No APAE2338L2540DDDB1-T
Manufacturer Abracon LLC
Catalog RF Antennas
Description RF ANT 2.3GHZ CER PATCH PIN ADH / 2.3GHz SDARS Ceramic Patch RF Antenna 2.323GHz ~ 2.353GHz 5dBic Pin Adhesive
Datasheet
APAE2338L2540DDDB1-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Abracon LLC
Series APAE
Package Tray
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.3GHz
Frequency Range 2.323GHz ~ 2.353GHz
Antenna Type Ceramic Patch
Number of Bands 1
VSWR 1.5
Gain 5dBic
Termination Pin
Mounting Type Adhesive
Height (Max) 0.181" (4.60mm)
Applications SDARS
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Other Names APAE2338L2540DDDB1T,535-11951
Standard Package 250
Win Source Part Number 997876-APAE2338L2540DDDB1-T
Ultra Librarian 3D Model Ultra Librarian APAE2338L2540DDDB1-T CAD Model

Description

The APAE2338L2540DDDB1-T is a ceramic patch antenna from Abracon LLC that operates in the frequency range of 2.323GHz to 2.353GHz.

  • Frequency Range: 2.323GHz to 2.353GHz
  • Application: SDARS
  • Gain: 5dBic
  • VSWR: 1.5
  • Frequency Group: UHF
  • Termination: Pins
  • Package: Tray
  • Mounting Type: Adhesive
  • Height: 0.181" (4.60mm)
