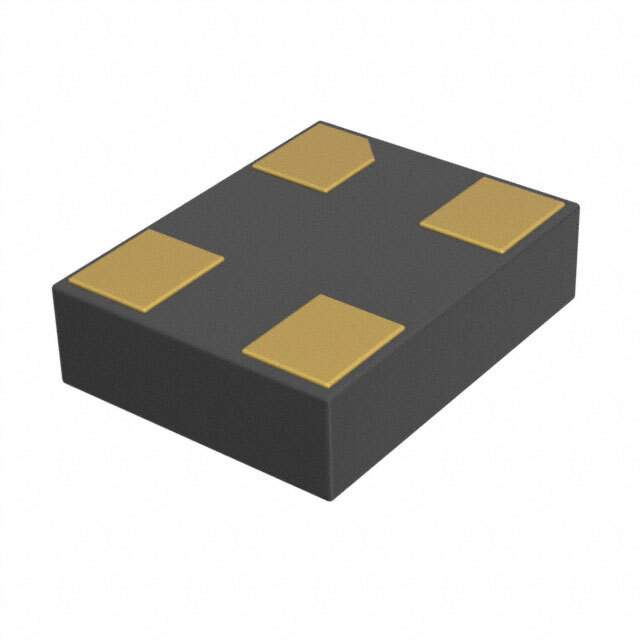

AMPMEFA-12.0000T Real Image
Same model may have multiple batches, images only for reference.

AMPMEFA-12.0000T

Part No AMPMEFA-12.0000T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 12.0000MHZ CMOS SMD / 12 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-VDFN
Datasheet
AMPMEFA-12.0000T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 12 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-VDFN
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 1056679-AMPMEFA-12.0000T
Ultra Librarian 3D Model Ultra Librarian AMPMEFA-12.0000T CAD Model

Description

The Abracon LLC AMPMEFA-12.0000T is a standard XO oscillator that is commonly used in electronic devices. It has a frequency of 12 MHz and a frequency stability of ±25ppm. The AMPMEFA-12.0000T features a CMOS output and a voltage supply of 1.71V to 3.63V. It is mounted on a surface using SMD (SMT) technology and comes in a tape & reel (TR) packaging. This oscillator has a height of 0.035 inches and is categorized under Crystals, Oscillators, Resonators>Oscillators. It has an operating temperature range of -40°C to 85°C and is an active component.
