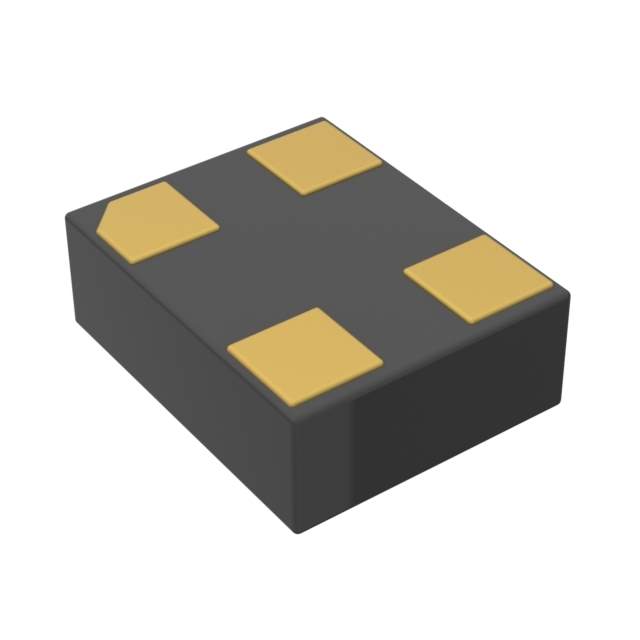

AMPMDEA-15.0000 Real Image
Same model may have multiple batches, images only for reference.

AMPMDEA-15.0000

Part No AMPMDEA-15.0000
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 15.0000MHZ CMOS SMD / 15 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
AMPMDEA-15.0000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMPM
Package Bulk
Base Resonator MEMS
Type XO (Standard)
Frequency 15 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 1.3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.035" (0.89mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 100
Win Source Part Number 1123481-AMPMDEA-15.0000
Ultra Librarian 3D Model Ultra Librarian AMPMDEA-15.0000 CAD Model

Description

The Abracon LLC AMPM series XO oscillator is a CMOS output frequency generator that operates on a voltage supply of 1.71V to 3.63V.

  • Manufacturer: Abracon LLC
  • Series: AMPM
  • Output: CMOS
  • Voltage Supply: 1.71V to 3.63V
  • Frequency: 15 MHz
  • Frequency Stability: ±50ppm
  • Height: 0.035” (0.89mm)
  • Mounting: Surface Mount Device (SMD)
  • Function: Standby
  • Current Supply: 1.3mA (Typ)
  • Package: Bulk
