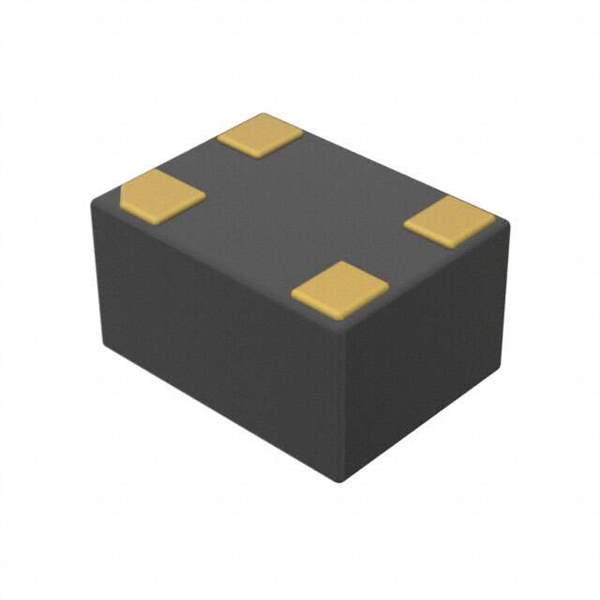

AMPDGGH-A08 Real Image
Same model may have multiple batches, images only for reference.

AMPDGGH-A08

Part No AMPDGGH-A08
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC MEMS XO DUAL OUTPUT / CMOS XO (Standard) Pin Configurable Oscillator 1.71V ~ 3.63V 4-SMD, No Lead
Datasheet
AMPDGGH-A08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Pin Configurable/Selectable Oscillators
Mfr Abracon LLC
Series AMPD
Package Bulk
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 12MHz, 24MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 1.3mA (Typ)
Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height 0.035" (0.89mm)
Package / Case 4-SMD, No Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 100
Win Source Part Number 1163339-AMPDGGH-A08
Ultra Librarian 3D Model Ultra Librarian AMPDGGH-A08 CAD Model

Description

The AMPDGGH-A08 is a pin configurable/selectable XO oscillator manufactured by Abracon LLC.

  • Frequency: 12MHz or 24MHz
  • Frequency Stability: ±50ppm
  • Output: CMOS
  • Current Supply: 1.3mA (Typ)
  • Mounting Technology: SMD (SMT)
  • Package: 4-SMD, no lead
  • Voltage Supply: 1.71V to 3.63V
  • Temperature Range: -40°C to 85°C
  • Packaging: Bulk
  • Standard Package: 100 units
