Same model may have multiple batches, images only for reference.

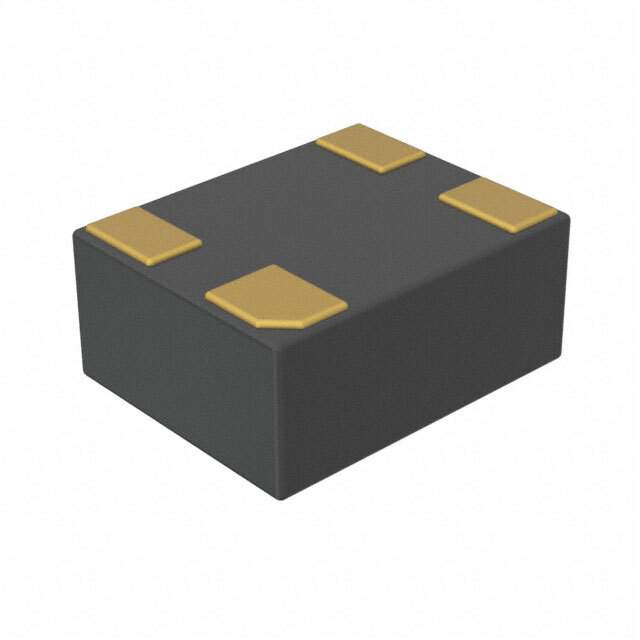

AMPDAEH-A08T Real Image
Same model may have multiple batches, images only for reference.

AMPDAEH-A08T

Part No AMPDAEH-A08T
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC MEMS XO DUAL OUTPUT / CMOS XO (Standard) Pin Configurable Oscillator 1.71V ~ 3.63V 4-SMD, No Lead
Datasheet
AMPDAEH-A08T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Pin Configurable/Selectable Oscillators
Mfr Abracon LLC
Series AMPD
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency - Output 1 12MHz, 24MHz
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 1.3mA (Typ)
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height 0.035" (0.89mm)
Package / Case 4-SMD, No Lead
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000
Win Source Part Number 992397-AMPDAEH-A08T
Ultra Librarian 3D Model Ultra Librarian AMPDAEH-A08T CAD Model

Description

The Abracon LLC AMPDAEH-A08T is a pin configurable/selectable oscillator type XO (standard) electronic component with a tape and reel (TR) package.

  • Oscillator Type: XO (standard)
  • Package: Tape and reel (TR)
  • Frequency Stability: ±50ppm
  • Height: 0.035 inches (0.89mm)
  • Current Supply: 1.3mA (Typ)
  • Voltage Supply: 1.71V to 3.63V
  • Package/Case: 4-SMD, no lead
  • Operating Temperature: -20°C to 70°C
  • Dimension: 0.079 inches L x 0.063 inches W (2.00mm x 1.60mm)
  • Frequency Output: 12MHz and 24MHz
  • RoHS Compliant: No
