Same model may have multiple batches, images only for reference.

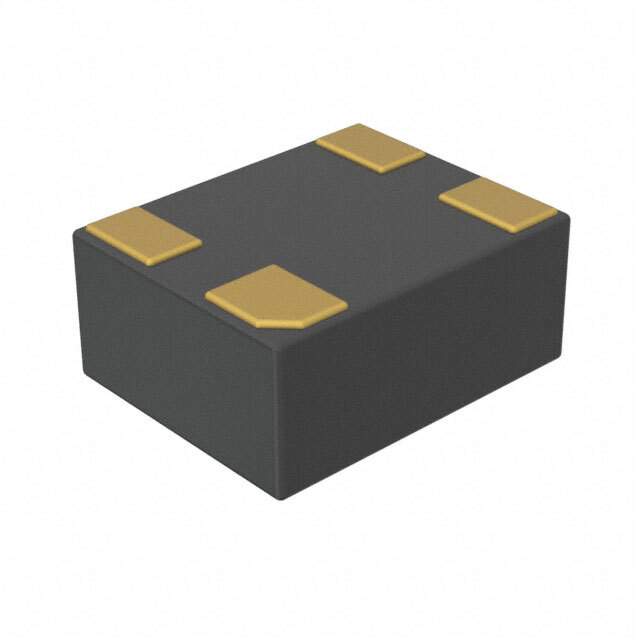

AMJMAGA-90.0000T3 Real Image
Same model may have multiple batches, images only for reference.

AMJMAGA-90.0000T3

Part No AMJMAGA-90.0000T3
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 90.0000MHZ CMOS SMD / 90 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-SMD, No Lead
Datasheet
AMJMAGA-90.0000T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AMJM
Package Tape & Reel (TR)
Base Resonator MEMS
Type XO (Standard)
Frequency 90 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 1.71V ~ 3.63V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3mA (Typ)
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.035" (0.89mm)
Current - Supply (Disable) (Max) 80µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 3,000
Win Source Part Number 990588-AMJMAGA-90.0000T3
Ultra Librarian 3D Model Ultra Librarian AMJMAGA-90.0000T3 CAD Model

Description

The AMJM series oscillator is a standard type oscillator that comes in a tape and reel package.

  • Frequency: 90 MHz
  • Maximum Seated Height: 0.035" (0.89mm)
  • Output: CMOS
  • Frequency Stability: ±50ppm
  • Current Supply (max): 3mA (Typ)
  • Current Supply (disable) (max): 80µA
  • Voltage Supply: 1.71V ~ 3.63V
  • Mounting: SMD (SMT) mountable
  • Standard Package: 3,000
  • Temperature Range: -40°C ~ 85°C
  • Applications: suitable for a wide range of applications
