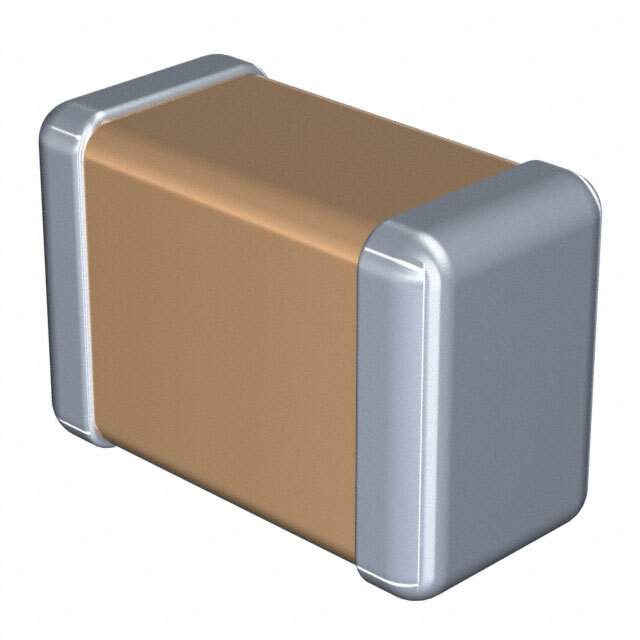

The C3216X5R1A226MT is a multilayer ceramic capacitor (MLCC) manufactured by TDK Corporation. This component boasts a capacitance of 22µF, with a voltage rating of 10V and an X5R dielectric. The case size is 3216, which corresponds to dimensions of 3.2mm x 1.6mm (or 1206 in imperial units). This capacitor is designed for applications where a relatively high capacitance value is needed in a small surface-mount package, often employed in decoupling and filtering circuits.

Applications:

• Decoupling capacitors in digital circuits
• Power supply filtering
• Smoothing circuits
• Bypass capacitors in various electronic circuits
• General purpose applications requiring high capacitance

Features:

• Capacitance: 22µF
• Voltage Rating: 10V
• Dielectric Material: X5R
• Case Size: 3216 (1206)
• Surface Mount Device (SMD)
• High capacitance in a small size
• RoHS Compliant

Benefits:

• Effective decoupling performance due to high capacitance
• Reduced board space requirements due to compact size
• Stable performance within the operating temperature range of X5R dielectric
• Improved power supply stability
• Easy to assemble using standard SMT (Surface Mount Technology) processes

Additional Details:

The X5R dielectric offers a good balance between capacitance value, size, and temperature stability. X5R capacitors typically operate reliably within a temperature range of -55°C to +85°C, with capacitance variations within a specified tolerance. The small 3216 case size allows for placement in densely populated circuit boards. The C3216X5R1A226MT is commonly used in mobile devices, consumer electronics, and industrial equipment. The nickel barrier termination with tin plating provides excellent solderability, ensuring reliable connections to the PCB. The part is designed for reflow soldering processes.

This capacitor excels in applications demanding high capacitance in a small footprint. Its X5R dielectric provides adequate stability for a wide variety of uses, making it a versatile component in modern electronic designs.
