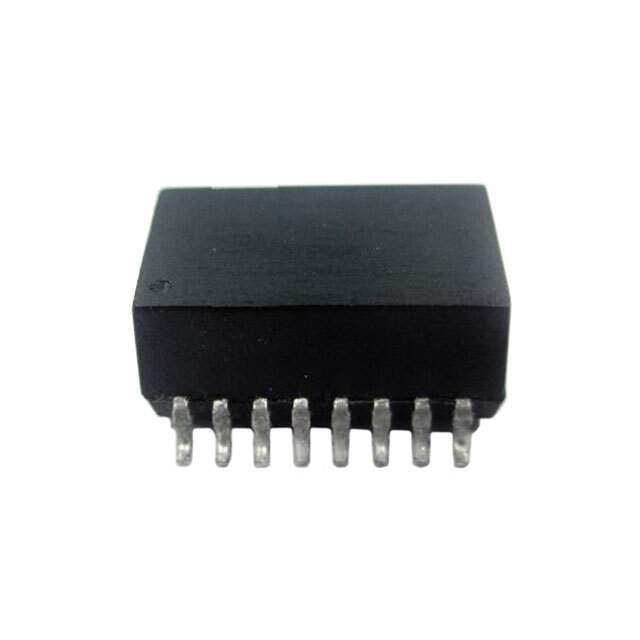

ALAN-101-T Abracon LLC
Same model may have multiple batches, images only for reference.

ALAN-101-T

Part No ALAN-101-T
Manufacturer Abracon LLC
Catalog Pulse Transformers
Description LAN XFRMR 10/100 1PORT EXT-TEMP
Datasheet
ALAN-101-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310601-ALAN-101-T
Category Transformers>Pulse Transformers
Manufacturer Abracon LLC
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Transformer Type LAN 10/100 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.504" L x 0.272" W (12.80mm x 6.90mm)
Height - Seated (Max) 0.217" (5.51mm)
Operating Temperature -40°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian ALAN-101-T CAD Model

Description

  • Meet IEEE802.3 specification
  • Extended Temperature (-40°C - +85°C)
  • ROHS peak reflow temperature rating 230°C
  • 1500Vrms Hi-Pot
