Same model may have multiple batches, images only for reference.

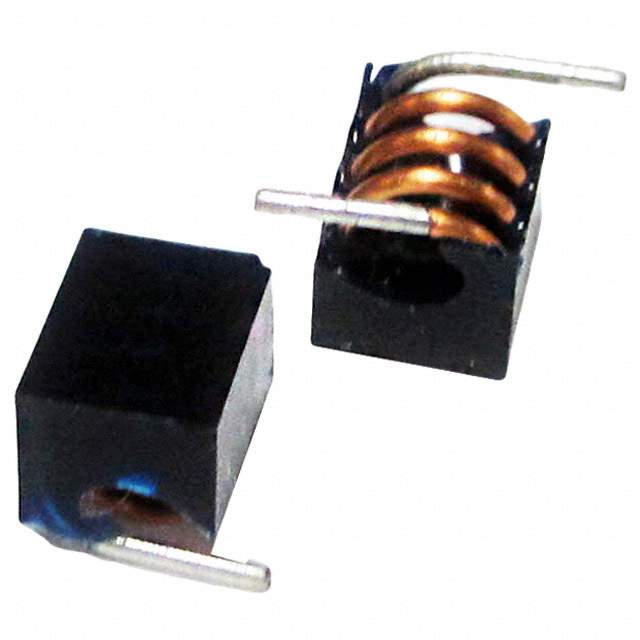

AIAC-0805C-10NK-T Real Image
Same model may have multiple batches, images only for reference.

AIAC-0805C-10NK-T

Part No AIAC-0805C-10NK-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 10NH 900MA 5.4MOHM SMD / 10 nH Unshielded Wirewound Inductor 900 mA 5.4mOhm Max Nonstandard
Datasheet
AIAC-0805C-10NK-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series AIAC-0805C
Package Tape & Reel
Type Wirewound
Material - Core Air
Inductance 10 nH
Tolerance ±10%
Current Rating (Amps) 900 mA
Shielding Unshielded
DC Resistance (DCR) 5.4mOhm Max
Q @ Freq 70 @ 300MHz
Frequency - Self Resonant 3GHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 300 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.112" L x 0.071" W (2.85mm x 1.80mm)
Height - Seated (Max) 0.083" (2.10mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-11953-1,535-11953-2,AIAC0805C10NKT,535-11953-6
Standard Package 4,000
Win Source Part Number 1033906-AIAC-0805C-10NK-T
Ultra Librarian 3D Model Ultra Librarian AIAC-0805C-10NK-T CAD Model

Description

The AIAC-0805C-10NK-T is a wirewound inductor with a nonstandard package/case.

  • Shielding: Unshielded
  • Inductance: 10 nH
  • Height: 0.083 inches
  • Standard Package: 4,000 items
  • Mounting: SMD (SMT)
  • Tolerance: ±10%
  • Core Material: Air
  • Q @ Freq: 70 @ 300MHz
  • Frequency Self-Resonant: 3GHz
  • DC Resistance (DCR): 5.4mOhm Max
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating (Amps): 900 mA
  • Suitable for: Use in electronic devices that require high inductance
