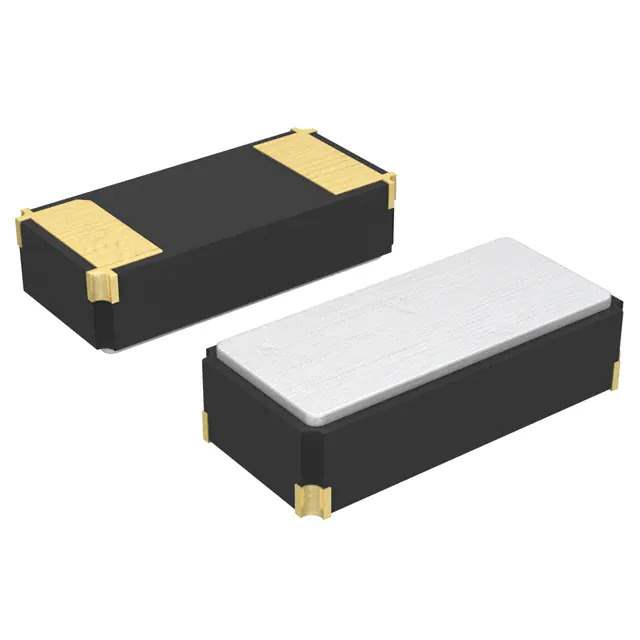

ABS07-166-32.768KHZ-T Real Image
Same model may have multiple batches, images only for reference.

ABS07-166-32.768KHZ-T

Part No ABS07-166-32.768KHZ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 7PF SMD
Datasheet
ABS07-166-32.768KHZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABS07
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±10ppm
Load Capacitance 7pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Standard Package 3,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 849114-ABS07-166-32.768KHZ-T
Ultra Librarian 3D Model Ultra Librarian ABS07-166-32.768KHZ-T CAD Model

Description

The 849114-ABS07-166-32.768KHZ-T is a tape and reel packaged kHz crystal from the ABS07 series by Abracon LLC.

  • Size: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Height: 0.035" (0.90mm)
  • Frequency: 32.768 kHz
  • Equivalent Series Resistance (ESR): 70 kOhms
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 7pF
  • Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package: 2-SMD, No Lead
  • Operating Temperature Range: -40°C to 85°C
  • Category: Crystals, Oscillators, and Resonators, specifically Crystals
