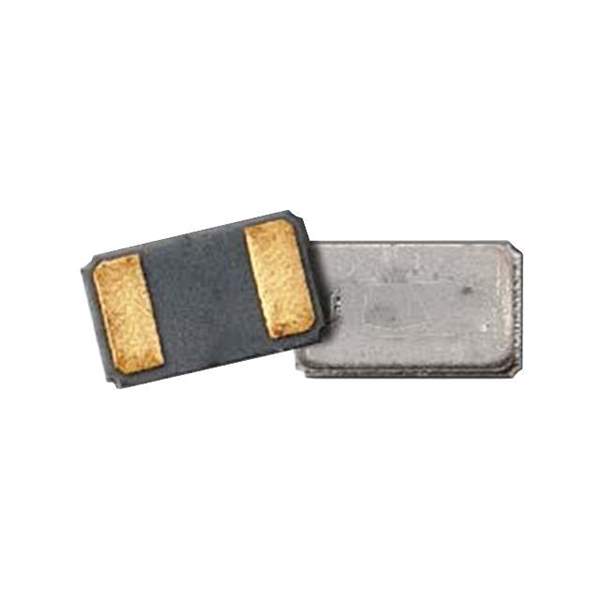

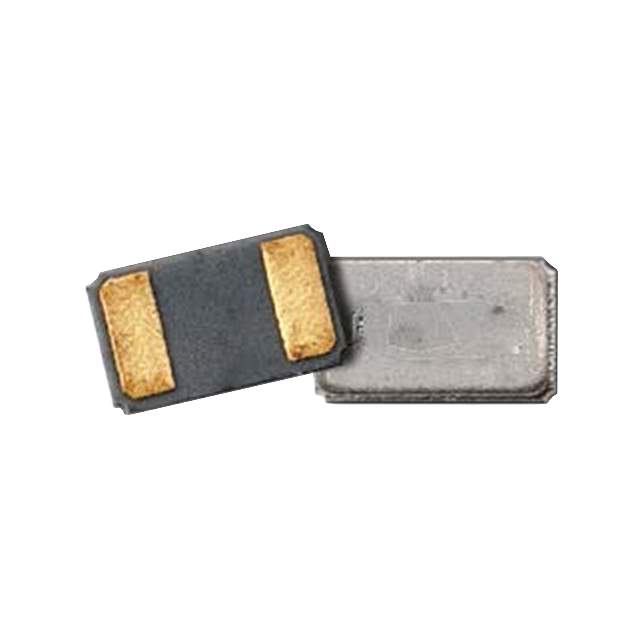

ABS06-32.768KHZ-T Real Image
Same model may have multiple batches, images only for reference.

ABS06-32.768KHZ-T

Part No ABS06-32.768KHZ-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 90 kOhms 2-SMD, No Lead
Datasheet
ABS06-32.768KHZ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABS06
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 90 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Other Names 535-10104-6,535-10104-2,ABS0632768KHZT,535-10104-1,Q9920719
Standard Package 3,000
Win Source Part Number 1030283-ABS06-32.768KHZ-T
Ultra Librarian 3D Model Ultra Librarian ABS06-32.768KHZ-T CAD Model

Description

The ABS06-32.768KHZ-T is a kHz Crystal (Tuning Fork) type crystal with a frequency of 32.768 kHz.

  • Frequency: 32.768 kHz
  • ESR (Equivalent Series Resistance): 90 kOhms
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 12.5pF
  • Operating Mode: fundamental
  • Maximum Seated Height: 0.024 inches (0.6mm)
  • Mounting Type: SMD (SMT)
  • Package: 2-SMD, No Lead
  • Operating Temperature Range: -40°C to 85°C
  • Series: ABS06
  • Manufacturer: Abracon LLC
  • Packaging: Tape and Reel
