Same model may have multiple batches, images only for reference.

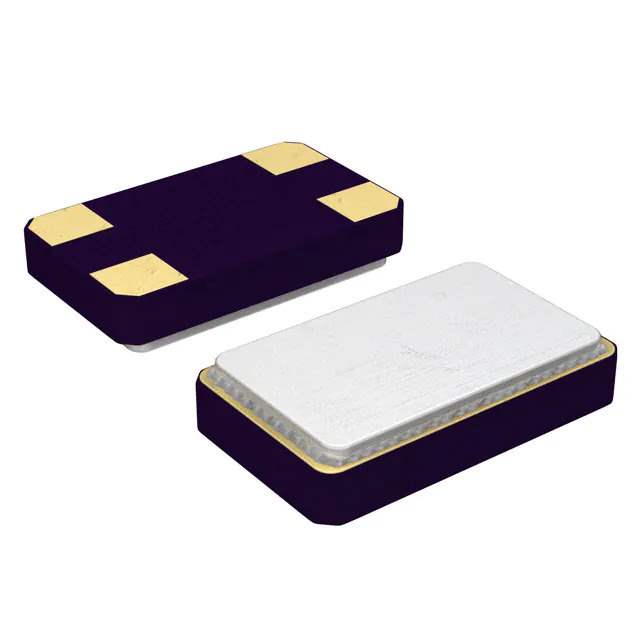

ABMM2-8.000MHZ-E2-T Real Image
Same model may have multiple batches, images only for reference.

ABMM2-8.000MHZ-E2-T

Part No ABMM2-8.000MHZ-E2-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABMM2
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 72 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.240" L x 0.142" W (6.00mm x 3.60mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,000 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 852584-ABMM2-8.000MHZ-E2-T
Ultra Librarian 3D Model Ultra Librarian ABMM2-8.000MHZ-E2-T CAD Model

Description

The ABMM2-8.000MHZ-E2-T is a MHz Crystal from Abracon LLC.

  • Series: ABMM2
  • Frequency: 8 MHz
  • Frequency Stability: ±20ppm
  • ESR: 72 Ohms
  • Load Capacitance: 18pF
  • Mode: Fundamental
  • Mounting Type: Surface Mount
  • Package: 4-SMD, no lead
  • Temperature Range: -20°C to 70°C
  • Size: 0.240" L x 0.142" W (6.00mm x 3.60mm)
  • Status: Active
  • Standard Package: 1,000 pcs
