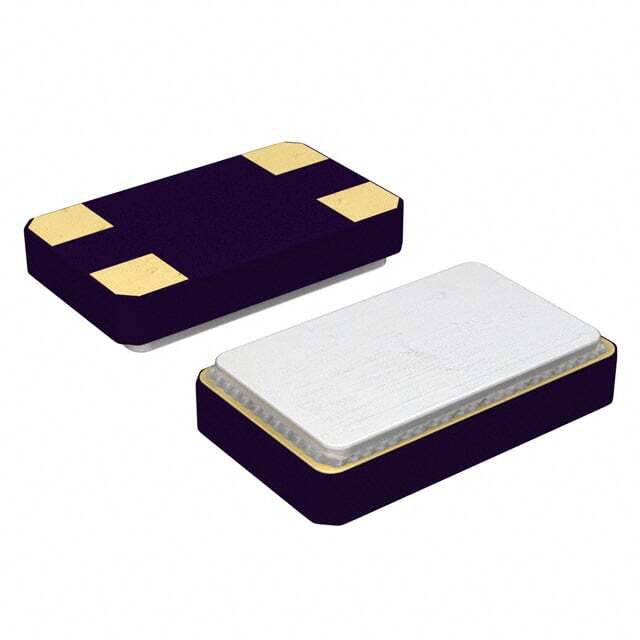

ABMM2-10.000MHZ-E2-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABMM2-10.000MHZ-E2-T

Part No ABMM2-10.000MHZ-E2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 10.0000MHZ 18PF SMD / 10 MHz ±20ppm Crystal 18pF 50 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABMM2
Package Tape & Reel
Type MHz Crystal
Frequency 10 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.240" L x 0.142" W (6.00mm x 3.60mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9629-6,Q7842771,535-9629-1,535-9629-2,ABMM210000MHZE2T
Standard Package 1,000
Win Source Part Number 1027752-ABMM2-10.000MHZ-E2-T
Ultra Librarian 3D Model Ultra Librarian ABMM2-10.000MHZ-E2-T CAD Model

Description

The ABMM2-10.000MHZ-E2-T crystal is a high-quality MHz crystal that is used in various electronic devices.

  • Load Capacitance: 18pF
  • Operating Mode: fundamental
  • Frequency Tolerance: ±20ppm
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Frequency Stability: ±20ppm
  • Package Type: 4-SMD, No Lead
  • Mounting Type: SMD (SMT)
  • Temperature Range: -20°C ~ 70°C
  • Dimension: 0.240" L x 0.142" W (6.00mm x 3.60mm)
