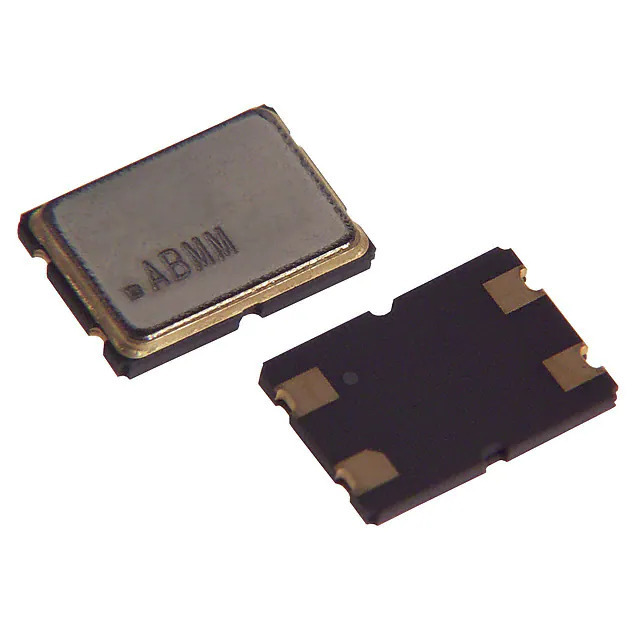

Same model may have multiple batches, images only for reference.
ABMM-25.000MHZ-B2-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABMM-25.000MHZ-B2-T

Part No ABMM-25.000MHZ-B2-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 25.0000MHZ 18PF SMD
Datasheet
ABMM-25.000MHZ-B2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABMM
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1366395-ABMM-25.000MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABMM-25.000MHZ-B2-T CAD Model

Description

The ABMM-25.000MHZ-B2-T is a 25MHz crystal oscillator from Abracon LLC.

  • Package: 4-SMD, No Lead
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height: 0.051" (1.30mm)
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • ESR: 40 Ohms
  • Operating Temperature: -20°C to 70°C
  • RoHS: Compliant
  • REACH: Unaffected
  • Packaging: Tape and Reel
