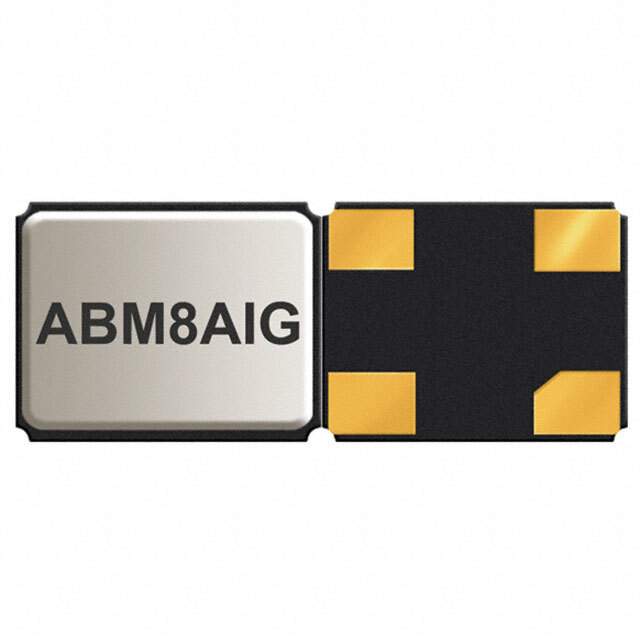

ABM8AIG-16.000MHZ-12-2Z-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM8AIG-16.000MHZ-12-2Z-T3

Part No ABM8AIG-16.000MHZ-12-2Z-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 16.0000MHZ 12PF SMD
Datasheet
ABM8AIG-16.000MHZ-12-2Z-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 300000951-ABM8AIG-16.000MHZ-12-2Z-T3
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators- Crystals
Series ABM8AIG
Package Tape & Reel (TR)/ Cut Tape (CT)
Type MHz Crystal
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.031" (0.80mm)
Ultra Librarian 3D Model Ultra Librarian ABM8AIG-16.000MHZ-12-2Z-T3 CAD Model

Description

The Abracon LLC ABM8AIG series MHz crystal is a surface mount component that measures 0.126 inches in length and 0.098 inches in width. It has a height of 0.031 inches and can operate in temperatures ranging from -40°C to 125°C. This component is used in various applications and is packaged in tape and reel (TR)/cut tape (CT) packaging.
