Same model may have multiple batches, images only for reference.

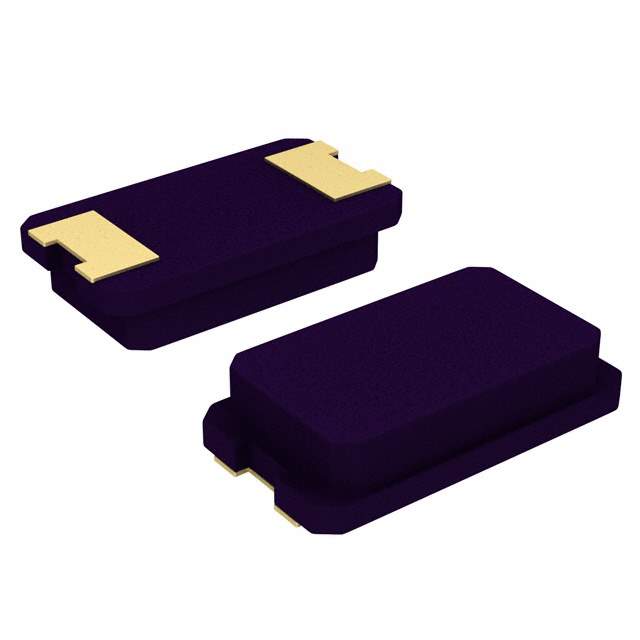

ABM7-14.7456MHZ-B4-T Real Image
Same model may have multiple batches, images only for reference.

ABM7-14.7456MHZ-B4-T

Part No ABM7-14.7456MHZ-B4-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 14.7456MHZ 18PF SMD / 14.7456 MHz ±30ppm Crystal 18pF 60 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM7
Package Tape & Reel
Type MHz Crystal
Frequency 14.7456 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.236" L x 0.138" W (6.00mm x 3.50mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-13459-6,535-13459-1,535-13459-2
Standard Package 1,000
Win Source Part Number 1034761-ABM7-14.7456MHZ-B4-T
Ultra Librarian 3D Model Ultra Librarian ABM7-14.7456MHZ-B4-T CAD Model

Description

The ABM7 series crystal oscillator manufactured by Abracon LLC is a high-quality electronic component that features a frequency of 14.7456 MHz, a frequency tolerance of ±30ppm, and a load capacitance of 18pF.

  • Frequency: 14.7456 MHz
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Package: Tape and reel
  • Standard Package: 1000 units per package
  • Mounting Type: Surface mount
  • Height: 0.055" (1.40mm)
  • Operating Temperature: -20°C to 70°C
  • ESR: 60 Ohms
  • Frequency Stability: ±50ppm
  • Applications: Widely used in various electronic applications
  • ECCN: EAR99
