Same model may have multiple batches, images only for reference.

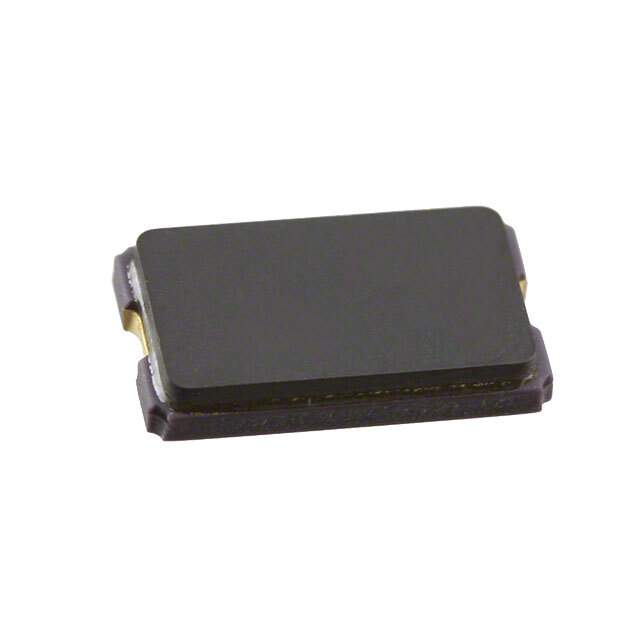

ABM2-12.000MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM2-12.000MHZ-D4Y-T

Part No ABM2-12.000MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 12.0000MHZ 18PF SMD / 12 MHz ±30ppm Crystal 18pF 60 Ohms 2-SMD, No Lead
Datasheet
ABM2-12.000MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM2
Package Tape & Reel
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.081" (1.80mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-10875-2,535-10875-1,ABM212000MHZD4YT,535-10875-6
Standard Package 1,000
Win Source Part Number 1165779-ABM2-12.000MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABM2-12.000MHZ-D4Y-T CAD Model

Description

The ABM2-12.000MHZ-D4Y-T is a MHz crystal manufactured by Abracon LLC.

  • Frequency: 12 MHz
  • ESR: 60 Ohms
  • Frequency Stability and Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Mode: fundamental mode
  • Package: 2-SMD, No Lead
  • Height: 0.081" (1.80mm)
  • Operating Temperature: -40°C to 85°C
  • Package Quantity: 1,000 units
  • Alternative Parts: ABM2-12.000MHZ-D4Y-T
