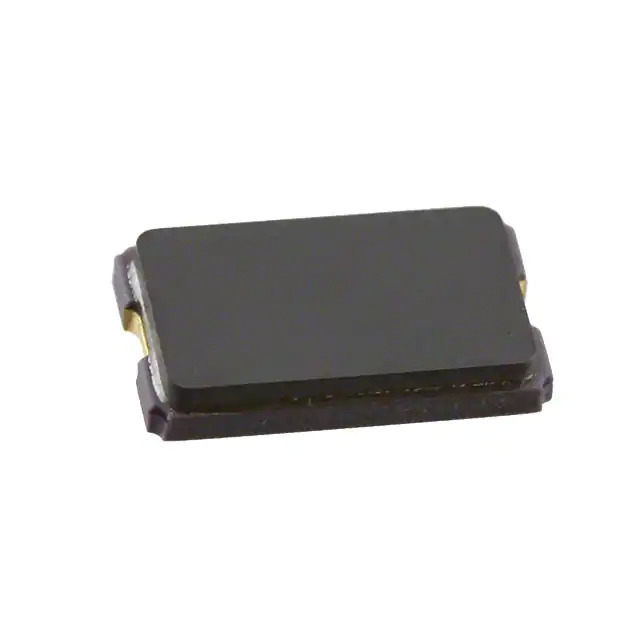

ABM2-11.0592MHZ-D4Y-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABM2-11.0592MHZ-D4Y-T

Part No ABM2-11.0592MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 11.0592MHZ 18PF SMD
Datasheet
ABM2-11.0592MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABM2
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 11.0592 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.081" (1.80mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1366394-ABM2-11.0592MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABM2-11.0592MHZ-D4Y-T CAD Model

Description

The ABM2-11.0592MHZ-D4Y-T is a 11.0592MHz crystal manufactured by Abracon LLC.

  • Series: ABM2
  • Packaging: Tape & Reel
  • Size: 0.315" L x 0.177" W (8.00mm x 4.50mm)
  • Height: 0.081" (1.80mm)
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • ESR: 60 Ohms
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount
