Same model may have multiple batches, images only for reference.

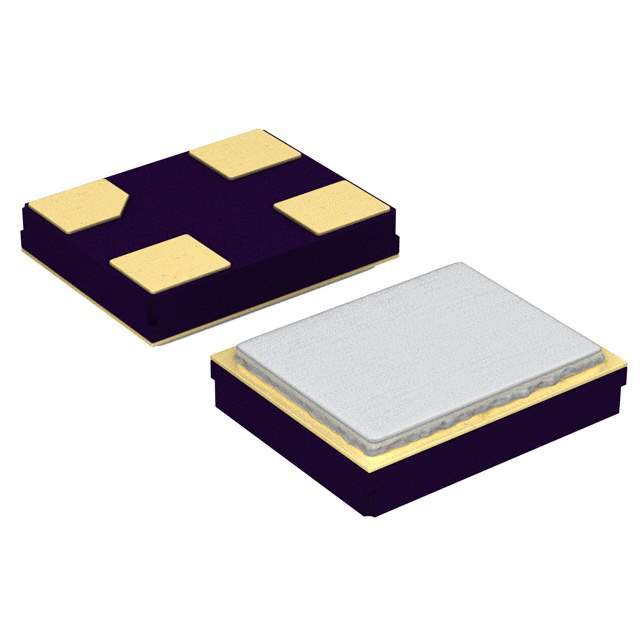

ABM11-27.120MHZ-B1U-T Real Image
Same model may have multiple batches, images only for reference.

ABM11-27.120MHZ-B1U-T

Part No ABM11-27.120MHZ-B1U-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 27.1200MHZ 10PF SMD / 27.12 MHz ±10ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Datasheet
ABM11-27.120MHZ-B1U-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM11
Package Tape & Reel
Type MHz Crystal
Frequency 27.12 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.023" (0.59mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-14959-2,535-14959-1,535-14959-6
Standard Package 1,000
Win Source Part Number 1034657-ABM11-27.120MHZ-B1U-T
Ultra Librarian 3D Model Ultra Librarian ABM11-27.120MHZ-B1U-T CAD Model

Description

The Abracon LLC ABM11-27.120MHZ-B1U-T MHz Crystal is a high-quality crystal oscillator that operates @ a frequency of 27.12 MHz.

  • Frequency: 27.12 MHz
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 10pF
  • Operating Mode: fundamental
  • Package: 4-SMD, No Lead
  • Height: 0.023" (0.59mm)
  • ESR (Equivalent Series Resistance): 100 Ohms
  • REACH: unaffected
  • Applications: oscillators, filters, and frequency synthesizers
