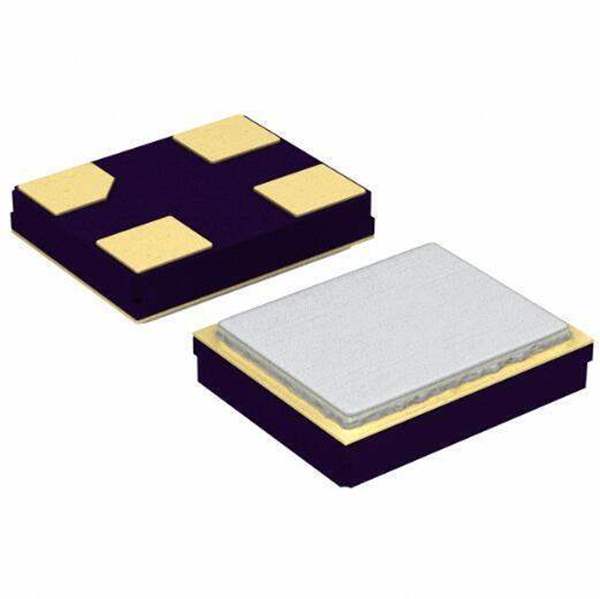

ABM11-142-27.120MHZ-T3 Abracon LLC
Same model may have multiple batches, images only for reference.

ABM11-142-27.120MHZ-T3

Part No ABM11-142-27.120MHZ-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 27.1200MHZ 8PF SMD
Datasheet
ABM11-142-27.120MHZ-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type MHz Crystal
Frequency 27.12 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Operating Temperature -20°C ~ 70°C
Win Source Part Number WS1305061-ABM11-142-27.120MHZ-T3
Ultra Librarian 3D Model Ultra Librarian ABM11-142-27.120MHZ-T3 CAD Model

Description

FEATURES:
• 2.0 x 1.6 x 0.59mm ultra miniature package.
• Suitable for RoHS compliant reflow.
• Seam sealed ceramic package with metal lid assures high precision and reliability.
