Same model may have multiple batches, images only for reference.

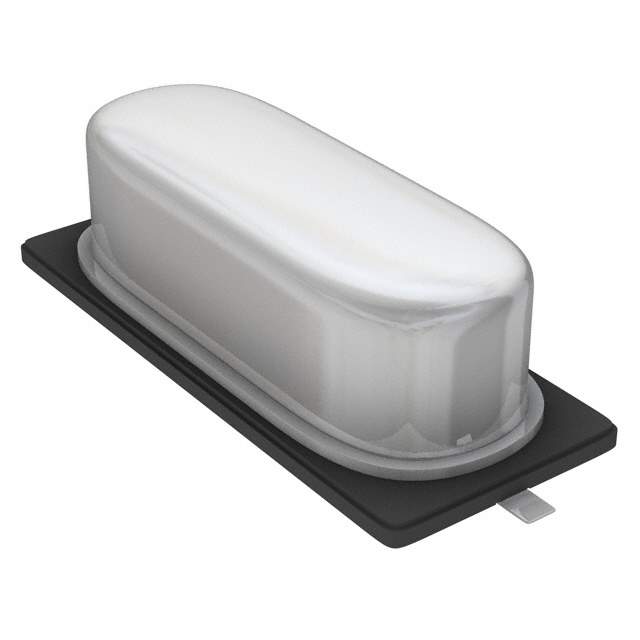

ABLS2-4.096MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-4.096MHZ-D4Y-T

Part No ABLS2-4.096MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 4.0960MHZ 18PF SMD
Datasheet
ABLS2-4.096MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 4.096MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR 180 Ohm
Operating Mode Fundamental
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
Win Source Part Number 1005366-ABLS2-4.096MHZ-D4Y-T
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Clock & Timing
Ultra Librarian 3D Model Ultra Librarian ABLS2-4.096MHZ-D4Y-T CAD Model

Description

The ABLS2-4.096MHZ-D4Y-T oscillator is a product of Abracon LLC.

  • Category: crystals, oscillators, and resonators
  • Frequency: 4.096MHz
  • Package: reel - TR
  • Mounting Type: SMD (SMT)
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: fundamental
  • Temperature Range: -40°C to 85°C
  • Application: clock and timing
