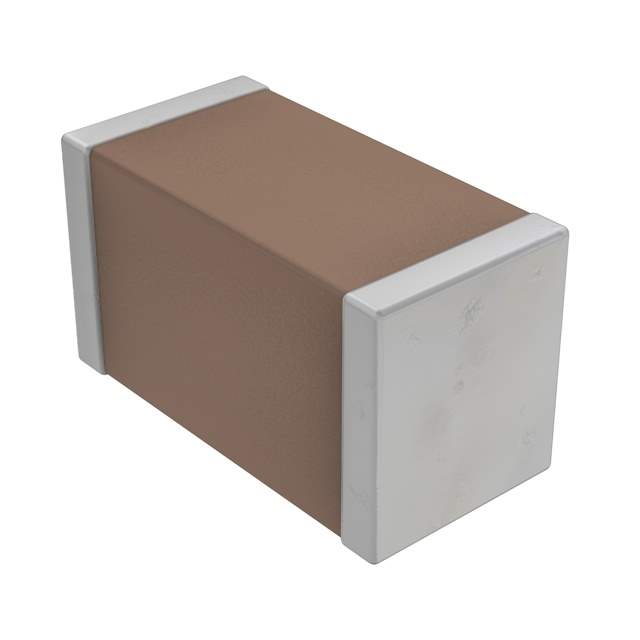

CGA2B2X7R1E103K050BA Real Image
Same model may have multiple batches, images only for reference.

CGA2B2X7R1E103K050BA

Part No CGA2B2X7R1E103K050BA
Manufacturer TDK Corporation
Catalog Ceramic Capacitors
Description CAP CER 10000PF 25V X7R 0402 / 10000 pF ±10% 25V Ceramic Capacitor X7R 0402 (1005 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Manufacturer TDK Corporation
Packaging Reel - TR
Capacitance 10000 pF
Tolerance ±10%
Voltage - Rated 25V
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Mounting Surface Mount, MLCC
Case / Package 0402 (1005 Metric)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Thickness (Max) 0.022" (0.55mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Other Part Number CGA2B2X7R1E103K,CGA2B2X7R1E103KT0Y0F,445-5608-6,445-5608-1,445-5608-2
Standard Package 10,000
Win Source Part Number 1329558-CGA2B2X7R1E103K050BA
Ultra Librarian 3D Model Ultra Librarian CGA2B2X7R1E103K050BA CAD Model

Description

The TDK Corporation 10000 pF Capacitor is designed for automotive applications and has a voltage rating of 25V.

  • Manufacturer: TDK Corporation
  • Capacitance: 10000 pF
  • Voltage Rating: 25V
  • Mounting Type: Surface Mount
  • Capacitor Type: MLCC
  • Tolerance: ±10%
  • Temperature Coefficient: X7R
  • Thickness: 0.022" (0.55mm)
  • Rating: AEC-Q200
  • Dimensions: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Case/Package Size: 0402 (1005 Metric)
