Same model may have multiple batches, images only for reference.

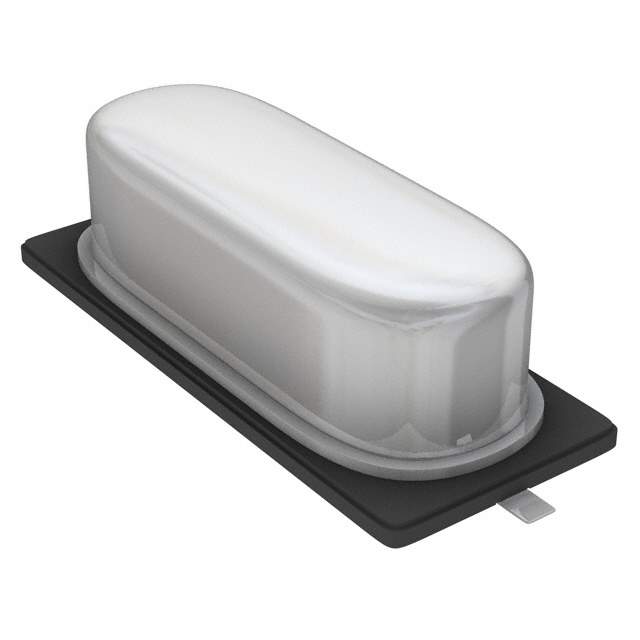

ABLS2-3.6864MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS2-3.6864MHZ-D4Y-T

Part No ABLS2-3.6864MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Oscillators
Datasheet
ABLS2-3.6864MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS2
Package Tape & Reel
Type MHz Crystal
Frequency 3.6864 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 180 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.130" (3.30mm)
Other Names 535-9856-6,535-9856-2,535-9856-1,ABLS236864MHZD4YT
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0030
Win Source Part Number 1285024-ABLS2-3.6864MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS2-3.6864MHZ-D4Y-T CAD Model

Description

The Abracon LLC ABLS2-3.6864MHZ-D4Y-T is a MHz crystal from the ABLS2 series.

  • Frequency: 3.6864 MHz
  • ESR (Equivalent Series Resistance): 180 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Package/Case: HC-49/US
  • Packaging: Tape and Reel
  • Height - Seated (Max): 0.130" (3.30mm)
  • Standard Package: 1,000
  • Operating Temperature: -40°C to 85°C
  • Mfr: Abracon LLC
