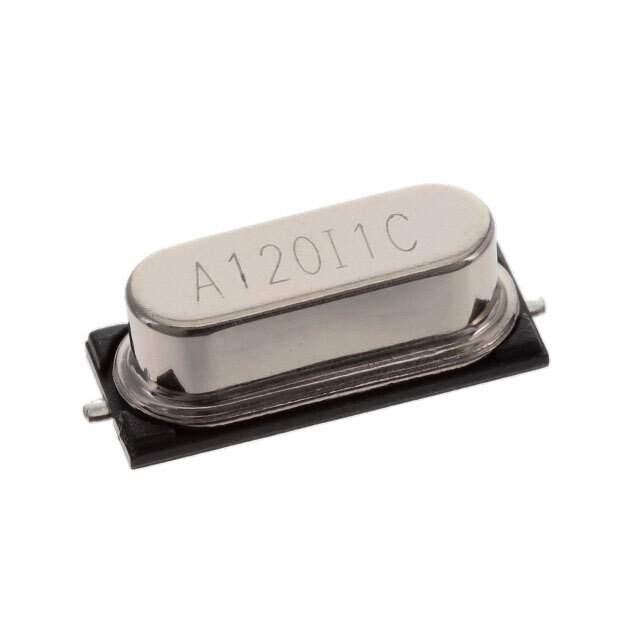

ABLS-12.000MHZ-20-B-3-H-T Real Image
Same model may have multiple batches, images only for reference.

ABLS-12.000MHZ-20-B-3-H-T

Part No ABLS-12.000MHZ-20-B-3-H-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 12.0000MHZ 20PF SMD / 12 MHz ±25ppm Crystal 20pF 50 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer Abracon LLC
Packaging Reel - TR
Type MHz Crystal
Frequency 12 MHz
Frequency Stability ±35ppm
Frequency Tolerance ±25ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Surface Mount
Case / Package HC-49/US
Size / Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.165" (4.20mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number 535-15006-6,535-15006-2,535-15006-1
Standard Package 1,000
Win Source Part Number 1328441-ABLS-12.000MHZ-20-B-3-H-T
Ultra Librarian 3D Model Ultra Librarian ABLS-12.000MHZ-20-B-3-H-T CAD Model

Description

The Abracon ABLS-12.000MHZ-20-B-3-H-T is a MHz Crystal that is commonly used in a variety of electronic devices.

  • Frequency: 12 MHz
  • Frequency Tolerance: ±25ppm
  • Load Capacitance: 20pF
  • ESR: 50 Ohms
  • Package: HC-49/US
  • Height: 4.20mm
  • Operating Temperature: -20°C to 70°C
