Same model may have multiple batches, images only for reference.

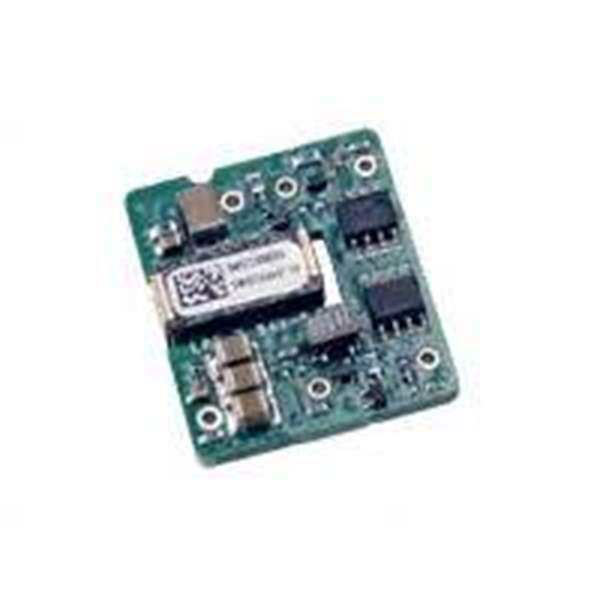

SW003A0A91 Real Image
Same model may have multiple batches, images only for reference.

SW003A0A91

Part No SW003A0A91
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description 18-36Vdc & 36-75Vdc Input; 3.3-15Vdc Output; 1-3.5A Output Current | DC DC CONVERTER 5V 15W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer ABB Embedded Power
Packaging Bulk
Status Obsolete
Type Isolated Module
Voltage - Input (Minimum) 36V
Voltage - Input (Maximum) 75V
Voltage - Output 1 5V
Current - Output (Maximum) 3A
Power (W) 15W
Voltage - Isolation 2.25kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 85.5%
Mounting Style Through Hole
Manufacturer Package 6-DIP Module
Parts Dimension 1.10" L x 0.96" W x 0.34" H (27.9mm x 24.4mm x 8.6mm)
Control Features Enable, Active Low
Manufacturer Pack Quantity 90
MSL Level Not Applicable
Win Source Part Number 1262693-SW003A0A91
Manufacturer Homepage www.lineagepower.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian SW003A0A91 CAD Model

Description

The ABB Embedded Power isolated module is a high-quality power supply that delivers a voltage isolation of 2.25kV and an output voltage of 5V.

  • Maximum Output Current: 3A
  • Suitable Applications: commercial ITE applications
  • Features: remote on/off, overcurrent protection (OCP), overvoltage protection (OVP), and undervoltage lockout (UVLO)
  • Mounting Style: through-hole
  • Package: 6-DIP
  • Power Rating: 15W
  • Operating Temperature: -40°C to 85°C
  • Status: obsolete
  • Supply: limited
  • Manufacturer Package: 90 units
