Same model may have multiple batches, images only for reference.

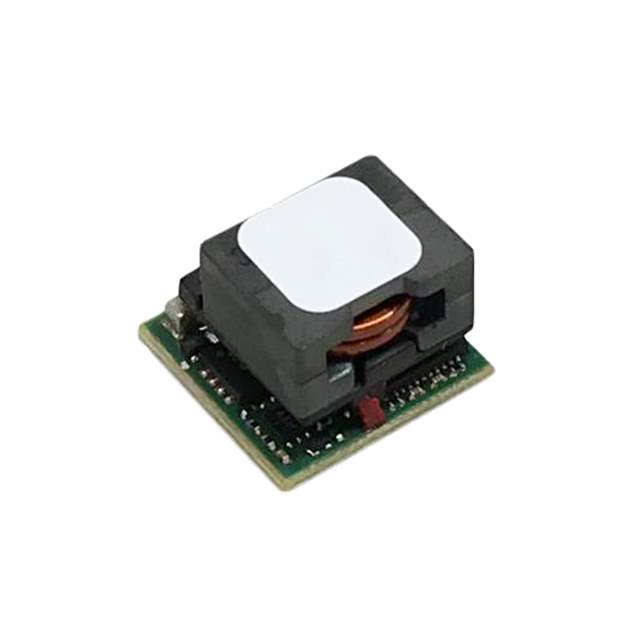

PJT020A0X3-SRZ Real Image
Same model may have multiple batches, images only for reference.

PJT020A0X3-SRZ

Part No PJT020A0X3-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.51-3.63V / Non-Isolated PoL Module DC DC Converter 1 Output 0.51 ~ 3.63V 20A 4.5V - 14.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Power Electronics Inc.
Series PicoDLynx™ II
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14.4V
Voltage - Output 1 0.51 ~ 3.63V
Current - Output (Max) 20A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93.9%
Mounting Type Surface Mount
Package / Case 17-SMD Module
Size / Dimension 0.48" L x 0.48" W x 0.34" H (12.2mm x 12.2mm x 8.5mm)
Supplier Device Package Module
Control Features Enable, Active Low
Base Product Number PJT020
Standard Package 200
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1351113-PJT020A0X3-SRZ
Ultra Librarian 3D Model Ultra Librarian PJT020A0X3-SRZ CAD Model

Description

The ABB Power Electronics Inc. PJT020A0X3-SRZ is a non-isolated PoL module from the PicoDLynx II series.

  • Application: ITE (Commercial)
  • Packaging: Tape & Reel
  • Package Quantity: 200
  • Length: 0.48 inches (12.2mm)
  • Width: 0.48 inches (12.2mm)
  • Height: 0.34 inches (8.5mm)
  • Current Output: 20A
  • Input Voltage: 4.5V to 14.4V
  • Output Voltage: 0.51V to 3.63V
  • Features: Remote On/Off, Overcurrent Protection (OCP), Over-Temperature Protection (OTP), Under-Voltage Lockout (UVLO)
  • Efficiency: 93.9%
  • Temperature Range: -40°C to 85°C
