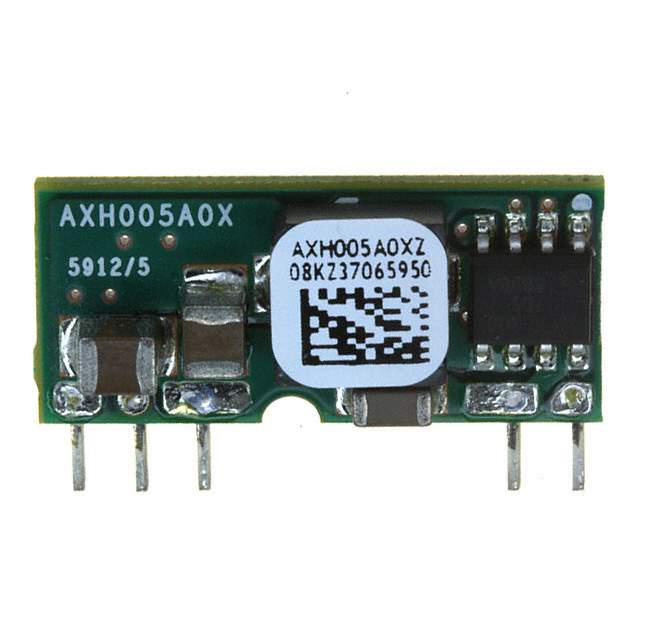

Same model may have multiple batches, images only for reference.

AXH005A0XZ

Name: AXH005A0XZ
Brand: ABB Embedded Power
SKU: 811910
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AXH005A0XZ
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.8-3.6V 18W / 3 - 5.5Vdc input; 0.75Vdc to 3.63Vdc Output; 5A output current
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	ABB Embedded Power
Packaging	Bulk
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	3V
Maximum Input Voltage	5.5V
Voltage - Output 1	0.8 ~ 3.6V
Current - Output (Maximum)	5A
Power (Watts)	18W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	94%
Mounting Style	Through Hole
Manufacturer Package	5-SIP Module
Dimension	0.90" L x 0.26" W x 0.40" H (22.9mm x 6.6mm x 10.2mm)
Control Features	Enable, Active Low
Manufacturer Pack Quantity	144
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	811913-AXH005A0XZ
Ultra Librarian 3D Model	Ultra Librarian AXH005A0XZ CAD Model

Alternative Products

Description

The ABB Embedded Power AXH005A0XZ is a non-isolated PoL module.

Package: 5-SIP module
Power: 18W
Features: Remote on/off, OCP, OTP, UVLO
Voltage Input (min): 3V
Voltage Output: 0.8 ~ 3.6V
Efficiency: 94%
Maximum Input Voltage: 5.5V
Applications: ITE (Commercial)
Popularity: Low
Manufacturer Pack Quantity: 144
Temperature Range: -40°C ~ 85°C
