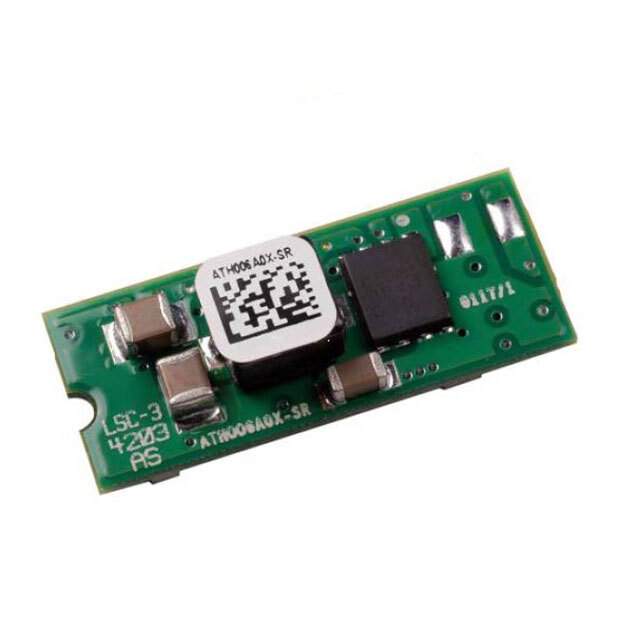

Same model may have multiple batches, images only for reference.

ATH006A0X4-SR

Name: ATH006A0X4-SR
Brand: ABB Embedded Power
SKU: 1316400
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ATH006A0X4-SR
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 0.8-3.6V 21W / Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 6A 2.4V - 5.5V Input
Datasheet	ATH006A0X4-SR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	ABB Power Electronics Inc.
Packaging	Reel - TR
Product Status	Obsolete
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.4V
Voltage - Input (Max)	5.5V
Voltage - Output 1	0.8 ~ 3.6V
Current - Output (Max)	6A
Power (Watts)	21 W
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	96%
Mounting	Surface Mount
Case / Package	6-SMD Module
Size / Dimension	1.10" L x 0.45" W x 0.29" H (27.9mm x 11.4mm x 7.2mm)
Control Features	Enable, Active High
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	555-1025-2,108988366,555-1025-1
Standard Package	400
Win Source Part Number	1316400-ATH006A0X4-SR
Ultra Librarian 3D Model	Ultra Librarian ATH006A0X4-SR CAD Model

Alternative Products

Description

The ATH006A0X4-SR DC-DC converter is a non-isolated PoL module that is surface-mounted.

Voltage Input Range: 2.4V to 5.5V
Output Voltage Range: 0.8V to 3.6V
Power Rating: 21W
Maximum Output Current: 6A
Features: Remote On/Off, Over-Current Protection (OCP), Over-Temperature Protection (OTP), Under-Voltage Lockout (UVLO)
Size: 1.10" L x 0.45" W x 0.29" H (27.9mm x 11.4mm x 7.2mm)
Application: ITE (Commercial)
RoHS Compliance: Compliant
Operating Temperature Range: -40°C to 85°C
