Same model may have multiple batches, images only for reference.

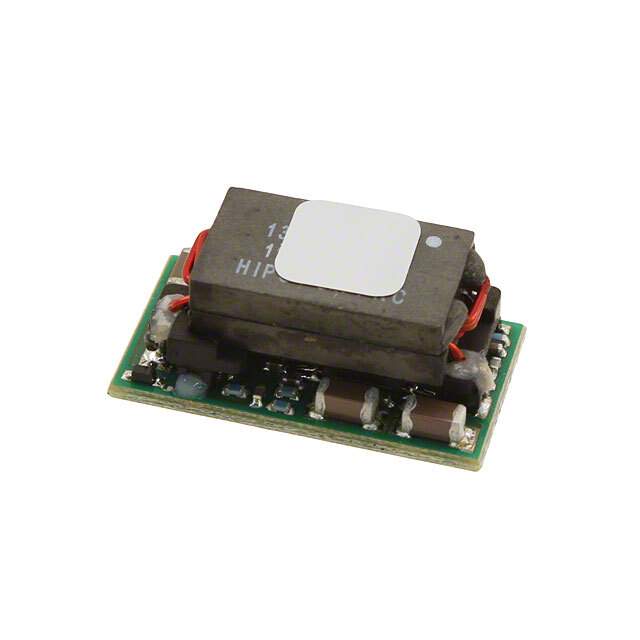

APXW003A0X3-SRZ Real Image
Same model may have multiple batches, images only for reference.

APXW003A0X3-SRZ

Part No APXW003A0X3-SRZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3-18V 27W / Non-Isolated PoL Module DC DC Converter 1 Output 3 ~ 18V 3A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Power Electronics Inc.
Series ProLynx™
Package Tape & Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 3 ~ 18V
Current - Output (Max) 3A
Power (Watts) 27 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 97%
Mounting Type Surface Mount
Package / Case 6-SMD Module
Size / Dimension 0.80" L x 0.45" W x 0.34" H (20.3mm x 11.4mm x 8.5mm)
Control Features Enable, Active Low
Base Product Number APXW003
Standard Package 250
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 1339989-APXW003A0X3-SRZ
Ultra Librarian 3D Model Ultra Librarian APXW003A0X3-SRZ CAD Model

Description

The APXW003A0X3-SRZ is a ProLynx™ series Non-Isolated PoL Module from ABB Power Electronics Inc.

  • Feature: Remote On/Off, OCP, OTP, UVLO
  • Application: ITE (Commercial)
  • Power (Watts): 27Watts
  • Mounting Type: Surface Mount
  • Package / Case: 6-SMD Module
  • Control Features: Enable, Active Low
  • Number of Outputs: 1
  • Current - Output (Max): 3A
  • Voltage - Input (Min): 9V
  • Voltage - Input (Max): 36V
  • Voltage - Output: 3 to 18V
  • Efficiency: 97%
  • Operating Temperature: -40 ~ 85
  • MSL Level: 2A (4 Weeks)
  • HTSUS: 8504.40.9580
