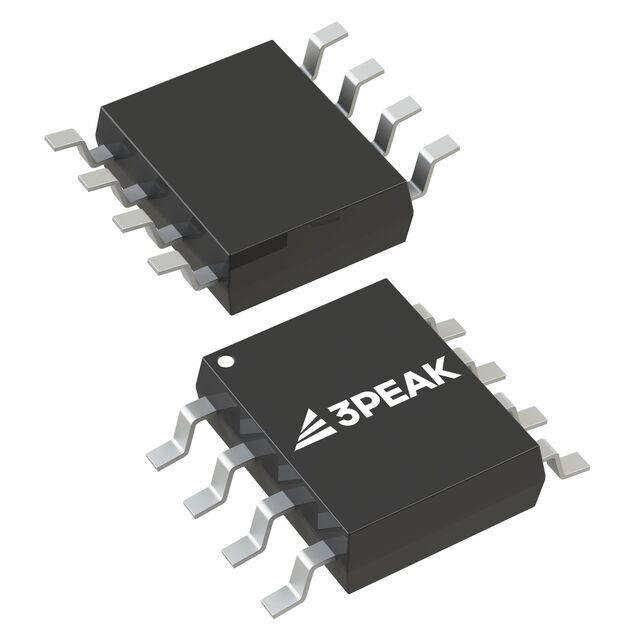

TPT7720F-SO1R 3PEAK – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TPT7720F-SO1R

Part No TPT7720F-SO1R
Manufacturer 3Peak
Catalog Digital Isolators
Description DGTL ISOLTR 3.75KV 2CH GP 8-SOIC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category IsolatorsDigital Isolators
Mfr 3PEAK
Series TPT772x
Part Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Channel Type Unidirectional
Voltage - Isolation 3750Vrms
Common Mode Transient Immunity (Min) 150kV/μs
Data Rate 150Mbps
Propagation Delay tpLH / tpHL (Max) 18ns, 18ns
Pulse Width Distortion (Max) 5ns
Rise / Fall Time (Typ) 0.7ns, 0.7ns
Voltage - Supply 2.25V ~ 5.5V
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOP
Ultra Librarian 3D Model Ultra Librarian TPT7720F-SO1R CAD Model
