Same model may have multiple batches, images only for reference.

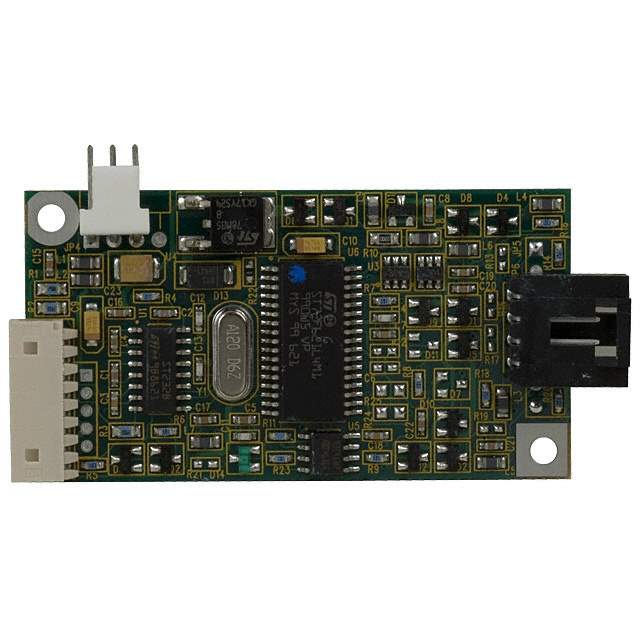

SC402S Real Image
Same model may have multiple batches, images only for reference.

SC402S

Part No SC402S
Manufacturer 3M
Catalog Display, Monitor - LCD Driver/Controller
Description LCD DRVR BRD 4WIRE RESISTV RS232 / series 4 Wire Resistive LCD Driver/Controller 5V, 12V RS-232 2.72" L x 1.57" W (69.1mm x 39.9mm)
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display, Monitor - LCD Driver/Controller
Mfr 3M
Series SC400
Package Box
Product Status Obsolete
Touchscreen 4 Wire Resistive
Voltage - Input 5V, 12V
Dimension 2.72" L x 1.57" W (69.1mm x 39.9mm)
Interface RS-232
Temperature Range - Operating 0°C ~ 65°C
Base Product Number SC402
Other Names 3M5542,98000328231
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1242513-SC402S
Ultra Librarian 3D Model Ultra Librarian SC402S CAD Model

Description

The 1095893 is an SC402S LCD driver/controller from the SC400 series. The controller is manufactured by 3M

  • Series: SC400
  • Voltage Input: 5V and 12V
  • Interface: RS-232
  • Temperature Range: 0°C to 65°C
  • Dimension: 2.72" L x 1.57" W (69.1mm x 39.9mm)
  • Touchscreen: 4-wire resistive
  • Packaging: Box
  • Product Status: Obsolete
  • Standard Package: 1 unit
